Split Core Current Transformer
GFUVE transformer have outdoor split core current transformer and indoor split core current transformer, widely used in current measuring and protection systems. GFUVE transformer IP67 outdoor split core current transformer have been used for distribution transformer power monitoring project and ground cable fault monitoring, indoor split core current transformer used in energy meter and energy consumption monitoring system. Accuracy class 0.2, 0.5S, 0.5, 1. secondary output signal 1A , 5A, 333mv,1v, 5v etc. All of split core ct according to standard IEC60044-1, IEC61869-2, NTC 2205, GB1208-2006, ANSI/IEEE C57.13, GB/T 20840.1-2010, GB/T 20840.2-2014, GB/T 22071.1-2018. The split core ct is designed for electrical metering applications specifically designed to be installed around primary current-carrying conductors without disconnecting wires or breaking the monitoring circuit. These split type current transformers are the best solution for applications in energy measurement and management.
-
LZCK-55 200/5A OUTDOOR SPLIT CORE CURRENT TRANSFORMER IP67 0.5S FOR METERING
- High quality outdoor CT
- High precision 0.2s, 0.5s
- High magnetic core
- IP67 level design
- IEC 61869-2, ANSI/IEEE C57.13
- 5A, 1A, 333mV, 100mA output
-
LZCK-80 RESIN CAST 300/5A~2000/5A OUTDOOR SPLIT CORE CURRENT TRANSFORMER IP67
- IEC 61869-2, ANSI/IEEE C57.13
- 50-2000A/1A or 5A, 333mV
- High quality outdoor CT
- High precision 0.2s, 0.5s, 0.5
- High magnetic split core
- IP67 Waterproof design
-
LZCK-120 IP67 2000/5A SPLIT CORE CT FOR DISTRIBUTION TRANSFORMER POWER MONITOR
- High precision 0.2s, 0.5s, 0.5
- IEC 61869-2, ANSI/IEEE C57.13
- 100-3000A/1A or 5A, 333mV
- 120mm diameter
- IP67 Waterproof design
- High quality outdoor CT
-

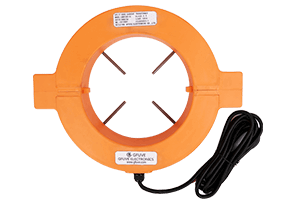

LMCK185-10 HIGH QUALITY OUTDOOR WATERPROOF SPLIT CORE CURRENT TRANSFORMER 3000/5A
- IEC 61869-2, ANSI/IEEE C57.13
- 100-5000A/1A or 5A, 333mV
- High precision 0.2s, 0.5s, 0.5
- 185mm diameter
- High quality silicon steel
- Outdoor IP67 Waterproof design
-

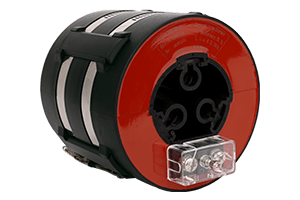

LZCK350-10 EPOXY RESIN 20VA HIGH VOLTAGE SPLIT TYPE CURRENT TRANSFORMER 100/5A
- 0-1000A Current Range
- Accuracy 0.5 or 1
- Large burden design
- IEC 61869-2/ANSI C57.13
- Diameter 45mm
- 5A or 1A output
-

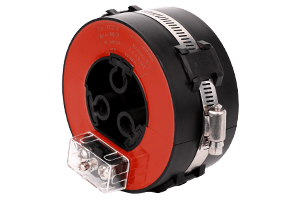

LZCK322-10 MEDIUM VOLTAGE ELECTRICAL CABINET RESIN CAST SPLIT CORE CURRENT TRANSFORMER 200/5A
- 10-35KV system
- 0-1000A Current Range
- Accuracy 0.5 or 1
- IEC 61869-2, ANSI/IEEE C57.13
- Polyurethane resin cast
- 5A or 1A output
-

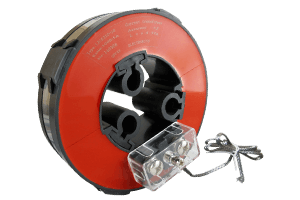

LZCK310-10 RESIN CAST WINDOW TYPE CURRENT TRANSFORMER SPLIT CORE 400/5A
- 300-1000A/5A or 1A
- Accuracy class 0.5 or 1
- IEC 61869-2, ANSI/IEEE C57.13
- Diameter 50mm
- Window type
- Split core ct
-

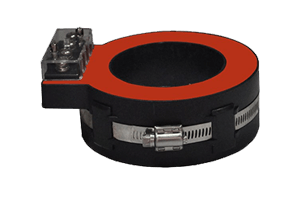

LZCK720-10 MEDIUM VOLTAGE ELECTRICAL MEASUREMENT & PROTECTION DRY TYPE SPLIT CORE CURRENT TRANSFORMER
- Accuracy 0.5s, 0.5 or 1
- IEC60044-1/IEC 61869-2
- Resin casting
- Diameter 80mm
- Dual Ratio
- 10-35KV system
-

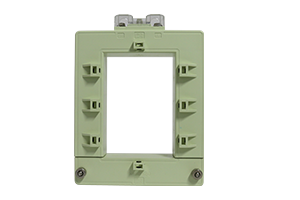

FU160 100A-6000A RECTANGLE BUSBAR TYPE SPLIT core CURRENT TRANSFORMER
- 100-6000A/5A or 1A
- Accuracy 0.2%, 0.5S, 0.5%
- IEC60044-1/IEC 61869-2
- Busbar CT design
- Diameter 200×80mm/120×80mm
- 5A, 1A, 333mV, 1V or.. output
-

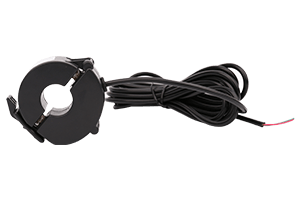

FU-16 10A-200A 333mV ECONOMIC MINI SPLIT CORE CT FOR ENERGY METER
- High accuracy 0.2%, 0.5%
- Most cost-effective
- 100A/333mV, 100A/1V etc
- Safe and easy installations
- Holding wire diameter: φ16mm
- IEC60044-1/IEC 61869-2
-

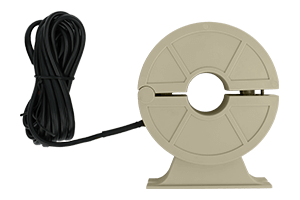

FU-32 200/5A ECONOMIC INDOOR SPLIT CORE CLAMP-ON CURRENT TRANSFORMER
- Up to 600A AC
- High accuracy 0.2%, 0.5%
- Most cost-effective
- Faster installation
- Weight:700g
- φ32mm diameter
-

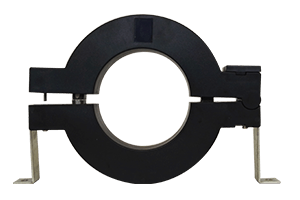

FU-80 LOW COST INDOOR SINGLE PHASE SPLIT CORE CURRENT TRANSFORMER 1000/5A
- Measurement range up 1200A AC
- High accuracy 0.2% or 0.5%
- Most cost-effective
- Lost cost design
- Safe and easy installations
- φ30mm or φ55mm orφ80mm
-

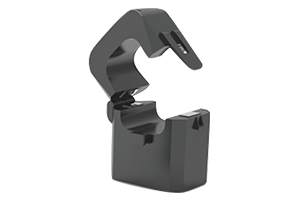

FU-36 5A-600A CE UL LOW LOST CLIP-ON SPLIT CORE CURRENT SENSOR
- 1mA to 600A AC
- Clip-on type design
- Most cost-effective
- Faster installation
- High accuracy 0.5%
- φ10,φ16, φ24, φ36mm
-

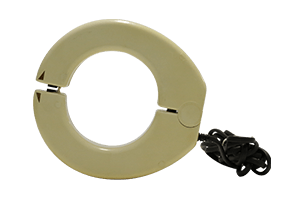

FU-100 100mm WINDOW TYPE 3000/5A SPLIT CORE CLAMP ON CURRENT TRANSFORMER
- 100-3000A/5A or 1A AC
- High accuracy 0.5%
- Clamp on design
- Diameter: φ100mm
- Most cost-effective
- Faster installation
-

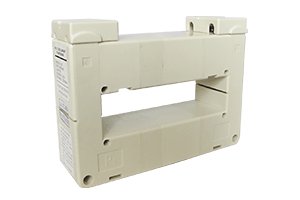

FU120 LOW VOLTAGE SPLIT CORE BUS BAR TYPE CURRENT TRANSFORMER 3000A
- Accuracy 0.2% , 0.5s
- 300-4000A/5A or 1A
- IEC60044-1/IEC 61869-2
- Bar bar ct design
- Diameter 120×130mm max
- 5A or 1A or 333mV or... output
