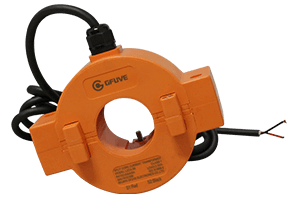

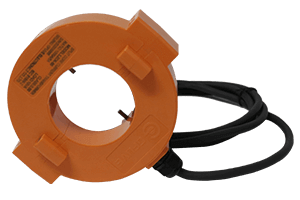

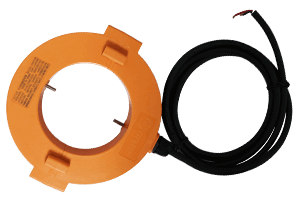

LZCK-55 200/5A OUTDOOR SPLIT CORE CURRENT TRANSFORMER IP67 0.5S FOR METERING
INTRODUCE
The Model LZCK-55 split core ct is a 55mm core diameter outdoor split core current transformer. Some clients also called it as outdoor TTCC. Due to its accuracy can be 0.5s and its IP67 protection degree level, this current transformer is widely used together with energy meters for measurement in power utilities. Also this current transformer can be used in outdoor distribution power transformer monitor system.
The semicircular ring core and secondary windings are vacuum poured by insulated resin. Besides infront using field, this model can be used both for measurement and microcomputer protection of electrical equipment in 11KV and 35KV AC power system or low voltage power system.
All of our outdoor current transformers are strictly comply IEC60044-1, IEC61869-2, ANSI/IEEE C57.13, NTC 2205, GB1208-2006, GB/T 20840.1-2010, GB/T 20840.2-2014, GB/T 22071.1-2018.
FEATURES
Measurement range 0-1000A AC; 100/5A, 200/5A, 300/5A, 400/5A, 500/5A, 600/5A, 750/5A, 800/5A, 1000/5A; 100/1A, 200/1A, 300/1A, 400/1A, 500/1A, 600/1A, 750/1A, 800/1A, 1000/1A; 100A/333mV, 200A/333mV, 300A/333mV ...... 1000A/333mV; 100A/1V, 200A/1V, 300A/1V ...... 1000A/1V; 50A/20mA, 100A/50mA, 200A/40mA, 300A/300mA ...... 1000A/250mA; High precision 0.2s, 0.2, 0.5s, 0.5; Secondary windings are vacuum poured by insulated resin; Secondary signal voltage output 333mV, 500mV, 1V, 5V etc optional; Holding wire diameter: φ55mm; High quality outdoor current transformer; Easily installation with electricity; Support dual ratio; Support install Seals; IP67 level outdoor; High magnetic silicon steel core; Cable length 1m, 2.5m, 5m, 7m, 10m etc optional; IEC60044-1, IEC61869-2, ANSI/IEEE C57.13, NTC 2205, GB1208-2006, GB/T 20840.1-2010, GB/T 20840.2-2014, GB/T 22071.1-2018;
APPLIATIONS

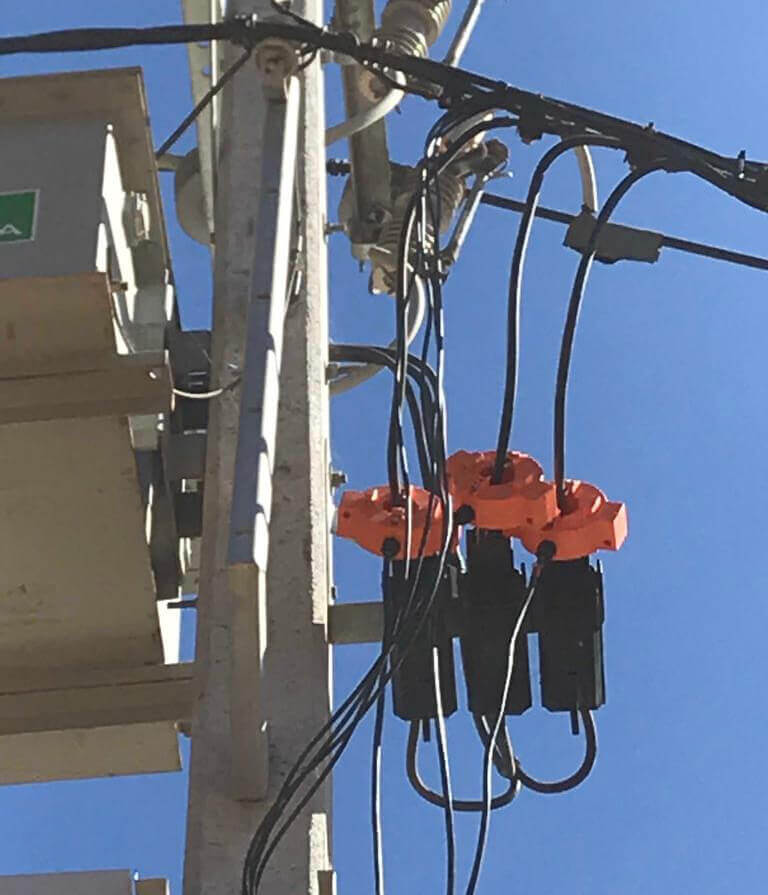

Distribution power transformer monitor system;
Energy meter;
Power meter;
MV switchgears;
Distribution boxes;
Power quality analyzer;
Meter tester;
Load monitoring;
Metering device;
Low voltage metering system;

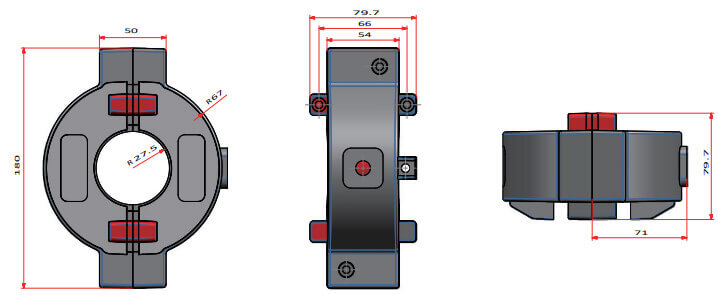

OUTLINE DRAWING
PARAMETERS
| Electrical parameters | |
|---|---|
| Standards | IEC60044-1; IEC61869-2; NTC 2205; ANSI/IEEE C57.13; GB1208-2006; GB/T 20840.1-2010; GB/T 20840.2-2014; GB/T 22071.1-2018 |
| Accuracy class | 0.2S, 0.2, 0.5S, 0.5%, 1%, 3% |
| Range of primary rated current | 30-1000A |
| Range of rated load | ≤10VA |
| Rated frequency | 50/60Hz |
| Rated secondary current | 5A, 1A, 20mA, 40mA, 50mA, 100mA, 500mA etc |
| Rated short-time thermal current | 40kA, 1S |
| Rated continuous thermal current | 150%I1n |
| Secondary winding power frequency withstand voltage | 3kV, 1min |
| Safety factor rating | (FS) <10 |
| Output signal | 1A, 5A, 333mV, 1V or 5V(customized) |
| Safety | CAT IV 600V IEC/EN 61010-1 |
| Insulation class | E |
| Flame retardant ABS and UV plastic shell inside, jaw waterproof apron. | |
| Mechanical parameters | |
| Aperture (mm) | Φ55 |
| Dimensions (W×D×H) (mm) | 180 × 138 × 52 |
| Weight (kg) | 2 |
| Length of cable | 2.5M(standard), 5M, 7M, 10M or customized |
| Cable information | 2*16AWG, voltage: 400/720V, outdoor+UV |
| Color | Orange, black or customized |
| Working conditions | |
| Operating temperature | -40°C to +70°C |
| Storage temperature | -40°C to +70°C |
| Ingress protection | IP67 |
| Environment | Outdoors or indoors |
| The Height of above sea level | 0-3000m |
| Conditions | No existence of severely begrimed, erosive and radioactive gas in the air. Continuous working under the rated current is allowed. |
TECHNICAL DATA
| Type | LZCK-55(2.5m cable) | |||
|---|---|---|---|---|
| Purpose | Measuring current transformer | |||
| Ratio | Accuracy class and rated load(VA) | |||
| I1/I2 | 0.5S | 0.5 | 1 | 3 |
| 100/1 | 0.1 | 1 | 2.5 | |
| 150/1 | 0.1 | 1 | 2.5 | |
| 200/1 | 1 | 2.5 | 2.5 | 2.5 |
| 250/1 | 1 | 2.5 | 2.5 | 2.5 |
| 300/1 | 1 | 2.5 | 2.5 | 2.5 |
| 400/1 | 2.5 | 2.5 | 2.5 | 2.5 |
| 500/1 | 2.5 | 2.5 | 5 | 5 |
| 600/1 | 2.5 | 2.5 | 5 | 5 |
| 800/1 | 2.5 | 2.5 | 5 | 5 |
| 1000/1 | 2.5 | 2.5 | 5 | 5 |
| 100/5 | 2.5 | 2.5 | ||
| 150/5 | 2.5 | 2.5 | ||
| 200/5 | 2.5 | 2.5 | 5 | 5 |
| 250/5 | 2.5 | 2.5 | 5 | 5 |
| 300/5 | 5 | 5 | 5 | 5 |
| 400/5 | 5 | 10 | 10 | 10 |
| 500/5 | 5 | 10 | 10 | 10 |
| 600/5 | 5 | 10 | 10 | 10 |
| 800/5 | 5 | 10 | 10 | 10 |
| 1000/5 | 5 | 10 | 10 | 10 |
| Ratio | Accuracy class | |||
| I1/I2 | 0.2S | 0.2 | 0.5S | 0.5 |
| 50/333mV | Y | Y | Y | Y |
| 100/333mV | Y | Y | Y | Y |
| 150/333mV | Y | Y | Y | Y |
| 200/333mV | Y | Y | Y | Y |
| 250/333mV | Y | Y | Y | Y |
| 300/333mV | Y | Y | Y | Y |
| 400/333mV | Y | Y | Y | Y |
| 500/333mV | Y | Y | Y | Y |
| 600/333mV | Y | Y | Y | Y |
| 800/333mV | Y | Y | Y | Y |
| 1000/333mV | Y | Y | Y | Y |
SELECTION GUIDE
| Model | Primary rated current | Secondary output | Rated load | Aperture (mm) | Description (mm) | Weight (kg) |
|---|---|---|---|---|---|---|
| LZCK-36 | 30-600A | 5A,1A, 333mV, 1V, 5V, 20mA, 40mA, 50mA, 100mA, 500mA etc | ≤10VA | Φ36 | 128×120×85.5 | 1.25 |
| LZCK-55 | 30-1000A | 5A,1A, 333mV, 1V, 5V, 20mA, 40mA, 50mA, 100mA, 500mA etc | ≤10VA | Φ55 | 180×138×52 | 2 |
| LZCK-80 | 50-2000A | 5A,1A, 333mV, 1V, 5V, 20mA, 40mA, 50mA, 100mA, 500mA etc | ≤10VA | Φ80 | 185×164×60 | 2.5 |
| LZCK-120 | 100-3000A | 5A,1A, 333mV, 1V, 5V, 20mA, 40mA, 50mA, 100mA, 500mA etc | ≤20VA | Φ120 | 225×204×64 | 3.2 |
| LMCK185-10 | 100-5000A | 5A,1A, 333mV, 1V, 5V, 20mA, 40mA, 50mA, 100mA, 500mA etc | ≤25VA | Φ185 | 350×284×86 | 4.5 |
