FU160 100A-6000A RECTANGLE BUSBAR TYPE SPLIT core CURRENT TRANSFORMER
INTRODUCE
The Model FU160 is a bus bar split core current transformer. Busbar type split core current transformer also called split core current transformer or openable current transformer. It mainly applies for electric system renovation project with easy installation, no need to remove primary busbar, can also operate when power on without affect clients, normal electricity utilization. It can help clients renovate projects and improve efficiency to save human, material and financial resources. This series can apply with relay tester, measuring and metering devices.
All of our split core current transformers are strictly comply IEC60044-1, IEC61869-2, ANSI/IEEE C57.13, NTC 2205, GB1208-2006, GB/T 20840.1-2010, GB/T 20840.2-2014, GB/T 22071.1-2018.
FEATURES
Measurement range 0-6000A AC; High precision 0.2%, 0.5s, 0.5%, 1%; IEC60044-1, IEC61869-2, ANSI/IEEE C57.13, NTC 2205, GB1208-2006, GB/T 20840.1-2010, GB/T 20840.2-2014, GB/T 22071.1-2018; 300/5A, 400/5A, 500/5A, 600/5A, 1000/5A, 1250/5A, 1500/5A, 2000/5A...5000/5A; Holding wire size: 120×50, 120×80mm, 200×80mm... Can be customized; Bus bar type split core design; Various size to meet different busbar installation; Easy install or remove with electricity; Secondary output 5A, 1A, 333mV, 1V, 2V, 5V....; Ratio could be customized;
APPLIATIONS
HEMS(home energy management system); BEMS(building energy management system); Various power monitoring systems; Smart grid application features; Three phase balance control; Load center; Digital fault recorders; In-Factory display In-Home display; Inverters for solar & wind turbine systems; Power measurement device for PLC; Data loggers to analyze building & machinery performance; Energy meter; Power meter; MV switchgears; Distribution boxes Sub-Metering accurate measurement; Power quality analyzer meter; Energy meter current measurement;

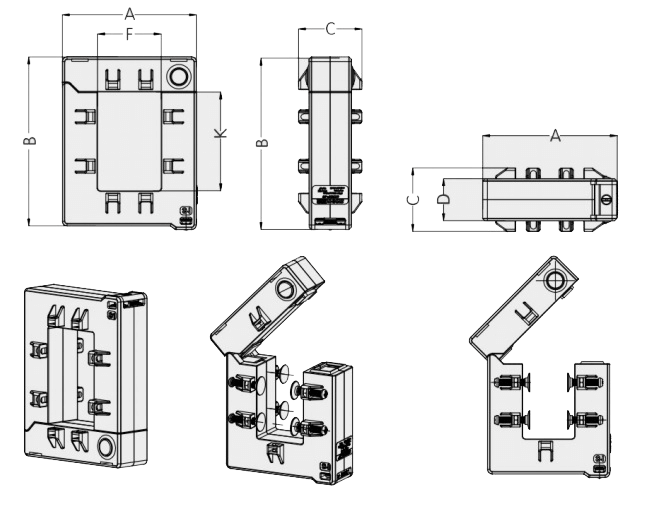

OUTLINE DRAWING
WIRING DIAGRAMS
P1, P2 is primary polarity terminal, S1, S2 is secondary polarity terminal.
P2, S2 is homonymous terminals (subtractive polarity).
PARAMETERS
| Electrical parameters | |
|---|---|
| Standards | IEC60044-1; IEC61869-2; NTC 2205; ANSI/IEEE C57.13; GB1208-2006; GB/T 20840.1-2010; GB/T 20840.2-2014; GB/T 22071.1-2018 |
| Accuracy class | 0.2, 0.5S, 0.5, 1, 3 |
| Range of primary rated current | 100-6000A |
| Range of rated load | 2.5VA-25VA |
| Rated frequency | 50/60Hz |
| Rated secondary current | 5A, 1A |
| Frequency range | 40Hz-2000Hz |
| Rated short-time thermal current | 40kA, 1S |
| Rated continuous thermal current | 120%I1n |
| Secondary winding power frequency withstand voltage | 3kV, 1min |
| Safety factor rating | (FS)<10 |
| Safety | CAT IV 600V IEC/EN 61010-1 |
| Output | K1, K2 or S1, S2 |
| Protection level | 3.0V0-P |
| Internal structure | Busbar type design |
| Max. jaw opening | 200 x 80mm, 160 x 80mm |
| Material | Silicon steel sheets+enameled wire+ABS+ 94V-0 |
| Mechanical parameters | |
| Dimensions (W×D×H) (mm) | 144 x 227 x 54 |
| Jaw cable diameter(mm) | 160 x 80, 200 x 80, ... |
| Weight (kg) | 2.8 |
| Color | White and grey, light green |
| Working conditions | |
| Operating temperature | -25°C to +70°C |
| Storage temperature | -40°C to +70°C |
| Outdoors protection | Silicone sleeve optional |
| Environment | Indoors |
| Altitude | <3000 meters |
| Conditions | No existence of severely begrimed, erosive and radioactive gas in the air. Permission of long-term operation under rated current. |
TECHNICAL DATA
| Type | FU160 | ||
|---|---|---|---|
| Purpose | Measuring current transformer | ||
| Ratio | Accuracy class | ||
| I1/I2 | 0.2 | 0.5 | 1 |
| 500A/333mV | YES | YES | |
| 1000A/333mV | YES | YES | |
| 2000A/333mV | YES | YES | |
| 3000A/333mV | YES | YES | |
| 4000A/333mV | YES | YES | |
| 5000A/333mV | YES | YES | |
| 500A/1V | YES | YES | YES |
| 500A/2V | YES | YES | YES |
| 500A/5V | YES | YES | YES |
| 1000A/1V | YES | YES | YES |
| 1000A/2V | YES | YES | YES |
| 1000A/5V | YES | YES | YES |
| 2000A/1V | YES | YES | YES |
| 2000A/2V | YES | YES | YES |
| 2000A/5V | YES | YES | YES |
| 3000A/1V | YES | YES | YES |
| 3000A/2V | YES | YES | YES |
| 3000A/5V | YES | YES | YES |
| 4000A/1V | YES | YES | YES |
| 4000A/2V | YES | YES | YES |
| 4000A/5V | YES | YES | YES |
| 5000A/1V | YES | YES | YES |
| 5000A/2V | YES | YES | YES |
| 5000A/5V | YES | YES | YES |
| 1000A/1A | YES | YES | YES |
| 2000A/1A | YES | YES | YES |
| 3000A/1A | YES | YES | YES |
| 4000A/1A | YES | YES | YES |
| 5000A/1A | YES | YES | YES |
| 300A/5A | YES | YES | |
| 500A/5A | YES | YES | |
| 600A/5A | YES | YES | |
| 800A/5A | YES | YES | |
| 1000A/5A | YES | YES | |
| 1500A/5A | YES | YES | |
| 2000A/5A | YES | YES | |
| 2500A/5A | YES | YES | |
| 3000A/5A | YES | YES | |
| 4000A/5A | YES | YES | |
| 5000A/5A | YES | YES | |
| 6000A/5A | YES | YES | |
SELECTION GUIDE
| Model | Primary rated current | Rated load | Secondary output | Aperture (mm) | Description (mm) | Weight (kg) |
|---|---|---|---|---|---|---|
| FU-16 | 5-200A | ≤10Ohm | 333mV,1V, 5V,100mA | φ16 | 38 x 55 x 18 | 0.06 |
| FU-32 | 100-600A | ≤10VA | 333mV,1V, 5V, 1A, 5A | φ32 | 110 x 130 x 41 | 0.7 |
| FU-36 | 100-600A | ≤2.5VA | 333mV,1V, 5V, 1A, 5A | φ10, φ16, φ24, φ36 | 26 × 43 × 27 31 × 50 × 30 43 ×73 × 39 60 × 89 × 43 |
0.1, 0.12, 0.2, 0.35 |
| FU-80 | 100-1200A | ≤5VA | 333mV,1V, 5V, 1A, 5A | φ30, φ55, φ80 | 88 x 129 x 28 108 x 155 x 28 138 x 193 x 28 |
0.4, 0.55, 0.6 |
| FU-100 | 300-3000A | ≤10VA | 333mV,1V, 5V, 1A, 5A | φ100 | 170 x 184.5 x 41 | 1 |
| FU120 | 200-4000A | ≤10VA | 333mV,1V, 5V, 1A, 5A | 120 x 130, 120 x 30 | 166 x 110 x 49 166 x 208 x 49 |
1.2, 1.7 |
| FU160 | 500-5000A | ≤20VA | 333mV,1V, 2V, 5V,1A, 5A | 160 x 80, 120 x 80 | 144 x 227 x 54 | 2.8, 2.3 |
ORDERING INFORMATION
Be sure to the type, current ratio, accuracy class, rated load and use of the products when you plan to make a order. Special specifications could be customized. All kinds of different specifications and parameters current transformers can be made according to your needs.
