Medium Voltage Current Transformer
Current transformer have low voltage current transformer, Medium voltage current transformer,High voltage current transformer, Electronic current transformer etc. GFUVE manufacturer is a very famous CT brand that is used in the global market.
-
LZCG530-10 0.2S 100/5A-600/5A HIGH PRECISION RESIN CAST CURRENT TRANSFORMER
- Accuracy 0.2s, 0.2, 0.5s, 0.5
- IEC60044-1/IEC 61869-2
- ANSI/IEEE C57.13
- Diameter 45mm
- 5A or 1A output
- 30 years life design
-
LZCG930-10 POLYURETHANE RESIN CAST RING CORE HIGH QUALITY 0.2S CURRENT TRANSFORMER
- Accuracy 0.2s, 0.5s, 5P20
- IEC60044-1/IEC 61869-2
- Polyurethane resin casting
- Diameter 60mm
- 5A or 1A output
- Weight 3.6 KG
-
LZCG2500-10 MEDIUM VOLTAGE 100/5A PROTECTION ZCT ZERO SEQUENCE CURRENT TRANSFORMER 5P20
- Zero sequence protection
- 5P10, 5P20, 10P10 etc
- IEC60044-1/ IEC 61869-2;
- Diameter 120, 140, 160mm
- 50-2000A/5A or 1A
- 10KV-35KV System
-
LZCT722-10 100/1A MEDIUM VOLTAGE 5P10 PROTECTION ZERO SEQUENCE CURRENT TRANSFORMER ZCT
- IEC60044-1/ IEC 61869-2;
- 0-1500A Current Range
- 5P10, 5P20, 10P10 etc
- Diameter 82mm
- 5A or 1A output
- Weight 2.3 KG
-
GFLZZ0224-10 HIGH PRECISION 0.2S MEDIUM VOLTAGE 11KV RESIN CAST INDOOR CURRENT TRANSFORMER
- BIL up to 75kV
- Indoor application
- Rated Voltage 12KV
- IEC60044-1/IEC 61869-2
- Material:Epoxy (HCEP)
- Class: 0.2S, 0.2, 0.5S, 0.5
-
GFLZZ0946-10C2 MEDIUM VOLTAGE INDOOR 11KV 0.2S/10P20 CURRENT TRANSFORMER
- 5A-3150A current range
- Class: 0.2S, 0.2, 0.5S, 0.5
- Rated Voltage 11KV
- IEC60044-1/IEC 61869-2
- Material:Epoxy (HCEP)
- BIL up to 75kV
-

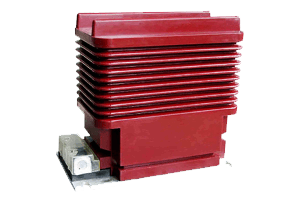

GFLZZ1235-20A2 15KV 20KV MEDIUM VOLTAGE 5P20 INDOOR HIGH ACCURACY CURRENT TRANSFORMER 0.2S
- BIL up to 125kV
- Material: Epoxy (HCEP)
- Class: 0.2S, 0.2, 0.5S, 5P20
- Indoor application
- Rated Voltage 20KV
- Design 30 years life
-

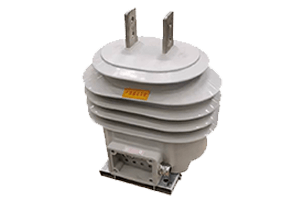

GFLZZW-10KV MEDIUM VOLTAGE 0.2S 10KV 12KV OUTDOOR POST TYPE CURRENT TRANSFORMER
- BIL up to 75kV
- Rated Voltage 12KV
- Outdoor application
- IEC60044-1/IEC 61869-2
- Class: 0.2S, 0.2, 0.5S, 0.5
- 10A-300A/5A or 1A
-

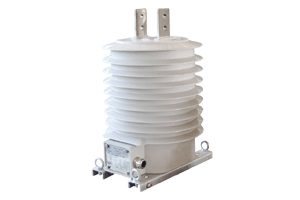

GFLZZW-20KV MEDIUM VOLTAGE 0.2S/5P20 20KV POST TYPE OUTDOOR CURRENT TRANSFORMER
- Outdoor application
- Rated voltage 22KV
- BIL up to 125kV
- IEC60044-1/IEC 61869-2
- Class: 0.2S, 0.2, 0.5S, 0.5
- 10A-2000A/5A or 1A
-

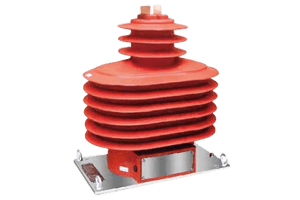

GFLZZW-33KV 0.2s/5p20 33kv 35kv Pole Type Current Transformer Outdoor
- Outdoor application
- Rated Voltage 36KV
- Class: 0.2S, 0.2, 0.5S, 0.5
- BIL up to 250kV
- IEC60044-1/IEC 61869-2
- 10A-2000A/5A or 1A
