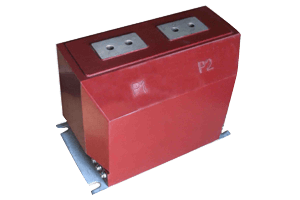

GFLZZ0224-10 HIGH PRECISION 0.2S MEDIUM VOLTAGE 11KV RESIN CAST INDOOR CURRENT TRANSFORMER
INTRODUCE
This model GFLZZ0224-10 dry type indoor current transformer is used in 12KV, 11KV, 10KV, 6KV and 3kV power system, for measuring and protection. It has been used in indoor pole mounted and transmission line. This product has the characteristics of high efficiency and large capacity, and can be customized according to customer requirements. This model current transformer with secondary 1A and 5A output.
For insulation and protection, the assembly is cast in hydrophobic cycloaliphatic epoxy (HCEP) using automatic vacuum pressure. The HCEP material offers superior arc track, ozone, and ultraviolet-resistive properties while maintaining physical strength. Primary and secondary use pure electrolytic copper, both winding and core have high voltage shielding processing. The hydrophobic surface properties of HCEP ensure highly reliable performance in wet, humid, or polluted environments.
It can be used for less than 12KV distribution cabinet, coal mine, power plant, rail way, factories... .
All of our GFUVE current transformers are strictly comply IEC60044-1, IEC 61869-2, ANSI/IEEE C57.13, GB1208-2006, GB/T 20840.1-2010, GB/T 20840.2-2014, GB/T 22071.1-2018, IEC/EN61010-2-032, IEC/EN 61010-2-031.
FEATURES
IEC60044-1, IEC 61869-2, GB/T 20840.1,2 & ANSI/IEEE C57.13, NTC 2205 standards; 3KV, 6KV, 10KV, 11KV, 12KV indoor using; Accuracy class: 0.2S, 0.2, 0.5S, 0.5, 1, 5P20, 5P10, 10P20; Secondary current output 5A or 1A; Built-in surge protection for current transformers; Reasonable structure and robust construction; High accuracy, extended range ratings for current transformers; Convenient installation, suitable for installation in any location; Rated voltages up to 12kV; Rated basic insulation levels (BIL) up to 75kV; Standard & special high accuracy metering classes; Dry-type design, environmentally friendly & minimum maintenance; Using life: more than 30years; Weight: 20KG; Material: epoxy(HCEP) ;
APPLIATIONS
Air switch cabinet; Ring network cabinet; Primary metering cabinets; Substation metering and relaying; Energy meter; Power meter; MV power quality analyzer Measuring instrument; Electric power bureau; Oil, gas company; Rail way; Distribution system; Power station; Power plant; Coal mine; Industrial and mining enterprises;

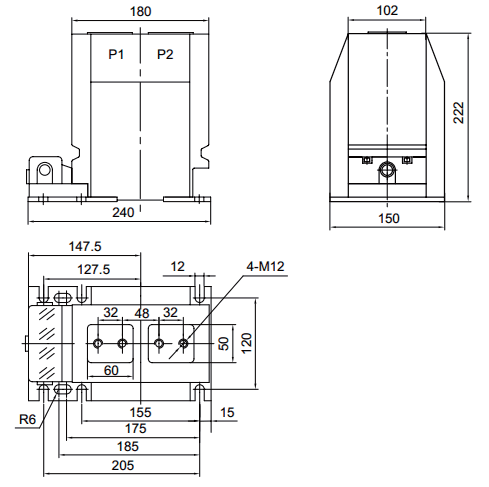

OUTLINE DRAWING
PARAMETERS
| Electrical parameters | |
|---|---|
| Standards | IEC60044-1; IEC 61869-2; NTC 2205; ANSI/IEEE C57.13; GB1208-2006; GB/T 20840.1-2010; GB/T 20840.2-2014; GB/T 22071.1-2018 |
| Accuracy class | 0.2S, 0.2, 0.5S, 0.5, 1 (IEC61869-2 standard) 5P20, 5P10, 10P10, 10P5 |
| Rated primary current | 10-2000A |
| Rated load | ≤50VA |
| Rated frequency | 50Hz or 60Hz |
| Rated secondary current | 5A or 1A |
| Ratio | 10/5A, 100/5A, 200/5A, 300/5A ...2000/5A or 1A |
| Rated short-time thermal current | 63kA, 1S |
| Rated continuous thermal current | 120%I1n |
| Secondary winding power-frequency voltage | 3kV, 1min |
| Rated insulation level | 12/42/75KV |
| Instrument security factor | FS ≤10 |
| Insulation class | E |
| Rated voltage level | 3KV, 6KV, 10KV, 11KV, 12KV |
| Mechanical parameters | |
| Dimensions (W×D×H) (mm) | 310 x 155 x 225 |
| Material | Epoxy resin |
| Weight (kg) | 22 |
| Operating conditions | |
| Operating temperature | -25°C to +70°C |
| Daily average temp | <+40°C |
| Storage temperature | -40°C to +70°C |
| Environment | Indoors |
| Altitude | <1000 meters |
| Conditions | No existence of severely begrimed, erosive and radioactive gas in the air. Permission of long-term operation under rated current. |
SELECTION GUIDE
| Ratied Primary Current(A) | Class Combination | Accuracy class and Rated output(VA) | Short-time thermal current(kA/S) | Rated dynamic current(kA) | |
|---|---|---|---|---|---|
| 0.2/0.5 | 10P15/5P20 | ||||
| 5-150 | 0.2(S)/0.2(S) 0.2(S)/10P15 0.5/10P15 0.2(S)/5P20 0.5/5P20 |
10 | 15 | 150 I1n | 375 I1n |
| 200 | 36 | 90 | |||
| 300 | 45 | 100 | |||
| 400-600 | 63 | 150 | |||
| 800-1000 | 100 | 250 | |||
| 1250-2000 | 140 | 350 | |||
