GFLZZ1235-20A2 15KV 20KV MEDIUM VOLTAGE 5P20 INDOOR HIGH ACCURACY CURRENT TRANSFORMER 0.2S
INTRODUCE
This model GFLZZ1235-20A2 indoor dry type current transformer is used in 15kV, 17.5kV, 20kV, 22kV and 24kV power system, for measuring and protection. It has been used in outdoor pole mounted and transmission line. This product has the characteristics of high efficiency and large capacity, and can be customized according to customer requirements.
For insulation and protection, the assembly is cast in hydrophobic cycloaliphatic epoxy (HCEP) using automatic vacuum pressure. The HCEP material offers superior arc track, ozone, and ultraviolet-resistive properties while maintaining physical strength. Primary and secondary use pure electrolytic copper, both winding and core have high voltage shielding processing. The hydrophobic surface properties of HCEP ensure highly reliable performance in wet, humid, or polluted environments.
It can be used for less than 20KV distribution cabinet, Coal mine,power plant, Rail way, factories... .
All of our GFUVE current transformers are strictly comply IEC60044-1, IEC 61869-2, ANSI/IEEE C57.13, GB1208-2006, NBR6855, GB/T20840.1-2010, GB/T 20840.2-2014, GB/T 22071.1-2018, IEC/EN61010-2-032, IEC/EN 61010-2-031.
FEATURES
IEC60044-1, IEC 61869-2, GB/T 20840.1,2 & ANSI/IEEE C57.13, NTC 2205 Standards; 15KV, 17.5KV, 20KV, 24KV indoor using; Accuracy class: 0.2S, 0.2, 0.5S, 0.5, 1, 5P20, 5P10, 10P20; Secondary current output 5A or 1A; Built-in surge protection for current transformers; Reasonable structure and robust construction; High accuracy, extended range ratings for current transformers; Convenient installation, suitable for installation in any location; Rated voltages up to 24kV; Rated basic insulation levels (BIL) up to 125kV; Standard & special high accuracy metering classes; Dry-type design, environmentally friendly & minimum maintenance; Using life: more than 30years; Weight: 35KG; Material: epoxy(HCEP);
APPLIATIONS
Primary metering cabinets; Air switch cabinet; Ring network cabinet; Distribution system; MV power quality analyzer; Measuring instrument; Substation metering and relaying; Energy meter; Power meter; Electric power bureau; Oil, gas company; Rail way; Airport; Power station; Power plant; Coal mine; Industrial and mining enterprises;

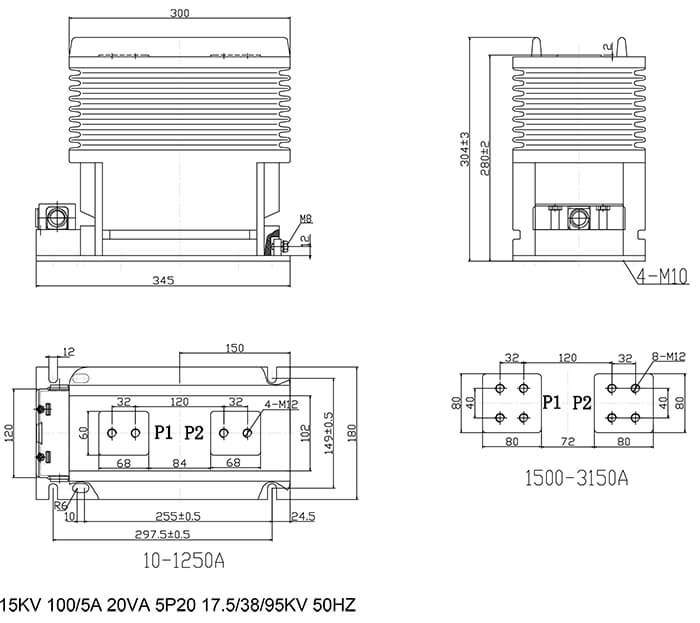

OUTLINE DRAWING
PARAMETERS
| Electrical parameters | |
|---|---|
| Standards | IEC60044-1; IEC 61869-2; NTC 2205; ANSI/IEEE C57.13; GB1208-2006; GB/T 20840.1-2010; GB/T 20840.1,2; GB/T 22071.1-2018 |
| Accuracy class | 0.2S, 0.2, 0.5S, 0.5, 1 (IEC61869-2 standard) 5P20, 5P10, 10P10, 10P5, 10P15, 5P15 |
| Rated primary current | 5-3150A |
| Rated load | ≤50VA |
| Rated frequency | 50Hz or 60Hz |
| Rated secondary current | 5A or 1A |
| Ratio | 5/5A, 100/5A, 200/5A, 300/5A ...3150/5A or 1A |
| Rated short-time thermal current | 100kA, 1S |
| Rated continuous thermal current | 120%I1n |
| Rated dynamic current | 200kA |
| Secondary winding power-frequency voltage | 3kV, 1min |
| Rated insulation level | 24/65/125KV |
| Instrument security factor | FS ≤10 |
| Insulation class | E |
| Rated voltage level | 15KV, 17.5KV, 20KV, 24KV |
| Mechanical parameters | |
| Dimensions (W×D×H) (mm) | 300x180x304 |
| Material | Epoxy resin |
| Weight (kg) | 35 |
| Operating conditions | |
| Operating temperature | -25°C to +70°C |
| Daily average temp | <+40°C |
| Storage temperature | -40°C to +70°C |
| Environment | Indoors |
| Altitude | <3000 meters |
| Conditions | No existence of severely begrimed, erosive and radioactive gas in the air. Permission of long-term operation under rated current. |
SELECTION GUIDE
| Ratied Primary Current (A) |
Class Combination | Accuracy class and Rated output (VA) |
Short-time thermal current (kA/S) |
Rated dynamic current (kA) |
||||||
|---|---|---|---|---|---|---|---|---|---|---|
| 0.2S | 0.5S | 0.2 | 0.5 | 10P10 | 10P15 | 5P20 | ||||
| 5-150 | 0.2(S)/0.2(S) 0.2(S)/10P 0.5/10P 0.2(S)/5P20 0.5/5P20 |
10 | 10 | 10 | 15 | 30 | 20 | 15 | 90 I1n | 225 I1n |
| 200-300 | 50 | 125 | ||||||||
| 300-800 | 63 | 130 | ||||||||
| 800-1500 | 15 | 20 | 40 | 30 | 20 | 80 | 160 | |||
| 1500-2000 | 100 | 160 | ||||||||
| 2000-3150 | 100 | 160 | ||||||||
| 5-150 | 0.2(S)/0.2(S)/10P 0.2(S)/0.5(S)/10P 0.5(S)/0.5(S)/10P |
10 | 10 | 10 | 15 | 20 | 15 | 10 | 90 I1n | 225 I1n |
| 200-300 | 50 | 125 | ||||||||
| 300-800 | 63 | 130 | ||||||||
| 800-1500 | 20 | 30 | 20 | 15 | 80 | 160 | ||||
| 1500-2000 | 100 | 160 | ||||||||
| 2000-3150 | 100 | 160 | ||||||||
| 5-150 | 0.2(S)/10P/10P 0.5(S)/10P/10P |
10 | 10 | 10 | 15 | 15 | 90 I1n | 225 I1n | ||
| 200-300 | 50 | 125 | ||||||||
| 300-800 | 63 | 130 | ||||||||
| 800-1500 | 20 | 20 | 80 | 160 | ||||||
| 1500-2000 | 100 | 160 | ||||||||
| 2000-3150 | 100 | 160 | ||||||||
ORDERING INFORMATION
Be sure to the type, current ratio, accuracy class, rated load and use of the products when you plan to make a order. Special specifications could be customized. All kinds of different specifications and parameters current transformers can be made according to your needs.
