GFJDZX1053-10 INDOOR SINGLE POLE 6KV 11KV VOLTAGE TRANSFORMER
INTRODUCE
GFJDZ1053-10 high accuracy indoor voltage transformer is used for metering and
relaying on less than 12kV circuits. This product has the characteristics of high precision and large capacity, and can be customized according to customer requirements. It is used by Air insulation cabinet, as protection voltage transformer and measurement voltage transformer in less than 12KV power system. It was designed with reasonable structure and robust construction. Its limiting therminal output can reach 200(VA), It has excellent short circuit and thermal withstand capabilities.
All of our indoor voltage transformers are strictly comply IEC60044-2, IEC61869-1,3, ANSI/IEEE C57.13, GB1207-2006, GB/T 20840.3-2013, GB/T 22071.2-2017, GB/T 20840.102-2020.
FEATURES
IEC60044-2; IEC61869-1,3; ANSI/IEEE C57.13 standard; Rated voltages up to 12kV; Rated basic insulation levels (BIL) up to 75kV; The windings are copper wire with copper plate double isolation; Partial discharge measurements exceed the IEEE/IEC and CAN/CSA requirements; Measuring and protection class using; Small size design; Multi-winding ratio design; Reasonable structure and robust construction; Convenient installation, suitable for installation in any location; Excellent short circuit and thermal withstand capabilities; Material: epoxy resin and high quality silicon steel; Accuracy class: 0.2, 0.5, 1, 3, 3P, 6P; Limiting therminal output 200(VA); IEC60044-2; IEC 61869-1,3; ANSI/IEEE C57.13 standard; Rated voltage ratio (KV): 3/√3 or 6/√3 or 10/√3 or 11/√3 /0.1/√3; Weight: 18KG;
APPLIATIONS
Power plant; Rail way; Coal mine; Airport; Power station; Air insulation cabinet; MV switchgears; Ring network cabinet; Distribution system; MV power quality analyzer; Measuring instrument; Energy meter; Power meter;

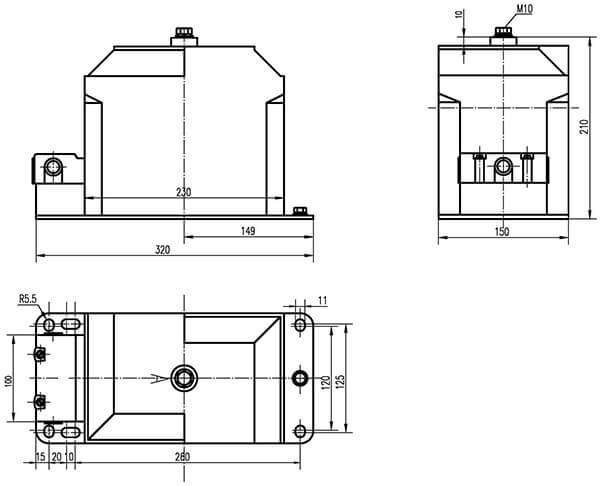

OUTLINE DRAWING
PARAMETERS
| Electrical parameters | |
|---|---|
| Standards | IEC60044-2; IEC61869-1,3; ANSI/IEEE C57.13; GB1207-2006; GB/T 20840.1-2010; GB/T 20840.3-2013; GB/T 22071.2-2017; GB/T 20840.102-2020 |
| Accuracy Class | 0.2, 0.5, 1, 3, 3P, 6P |
| Rated Voltage | 12KV, 11KV, 10KV, 6KV, 3KV |
| Rated load | ≤150VA |
| Secondary voltage output | 100V, 110V, 120V, 220V, 240V |
| Rated frequency | 50/60Hz |
| Cosø | 0.8 (lag) |
| Phase number | Single |
| Connection method | Star |
| Rated insulation level | 12/42/75KV, 7.2/32/60KV, 3.6/25/40KV |
| Insulation class | E |
| Class of pollution | II |
| Mechanical parameters | |
| Material | Epoxy resin |
| Dimensions (W×D×H) (mm) | 320 × 150 × 210 |
| Weight (kg) | 18.0 |
| Color | Red or customized |
| Working conditions | |
| Operating temperature | -40°C to +70°C |
| Storage temperature | -40°C to +70°C |
| Daily average temp | <+40°C |
| Environment | Indoors |
| Altitude | <1000 meters |
| Conditions | No existence of severely begrimed, erosive and radioactive gas in the air. Continuous working under the rated voltage is allowed. |
SELECTION GUIDE
| Model | Rated Voltage Ratio(KV) | Accuracy class and Rated output (VA) | Limiting Therminal Output(VA) | |||||
|---|---|---|---|---|---|---|---|---|
| 0.2 | 0.5 | 1 | 3 | 3P | 6P | |||
| GFJDZX1053-10 | 12/√3/0.12/√3/0.12/√3 | 15 | 30 | 60 | 150 | 50 | 50 | 200 |
| GFJDZX1053-10 | 11/√3/0.11/√3/0.11/√3 | |||||||
| GFJDZX1053-10 | 10/√3/0.1/√3/0.1/√3 | |||||||
| GFJDZX1053-6 | 6/√3/0.1/√3/0.1/√3 | |||||||
| GFJDZX1053-3 | 3/√3/0.1/√3/0.1/√3 | |||||||
