M50 0.05HZ-200MHZ WIDE-BAND IMPULSE CURRENT TRANSFORMER
INTRODUCE
The M50 wide-band current transformer is one type impulse current sensor, it utilizes the principle of magnetic induction to convert the measured current into a voltage signal proportional to the current, with high insulation between the primary and secondary sides (electrical isolation measurement of high impulse current and high-frequency pulse current). The M50 impulse current sensor has the advantages of high accuracy, wide frequency band, high sensitivity, no need for external power supply, and convenient use, making it suitable for measuring large impulse currents and wide-band transient currents. Can be applied to the measurement of lightning current, capacitor charging and discharging current, switch and harmonic current, EMI current; It can also be used for calibration of Roche coil current sensors; Due to limitations such as grounding circuit noise and high voltage isolation, it is not suitable for situations with splitters. The main performance indicators of this current sensor have been tested by authoritative departments and have reached the advanced level of similar international products.
All models are sealed and are suitable for use in high voltage insulating oil or under vacuum. They can be connected to oscilloscopes, spectrum analyzers, power analyzers, digital voltmeters, analog-to-digital convertors, and a variety of other measuring instruments.
FEATURES
Maximum peak current: 5kA; Maximum RMS current: 100A; Frequency range: 0.5Hz-200MHz; Extremely strong anti-interference ability; Rise time: 20ns; High accuracy; Wide bandwidth; High sensitivity; Can be customized; No external power supply and other advantages; Current drop rate: 0.8% / mS; Holding wire diameter: φ50mm; Conforms to EN 61010, 600V CAT III; IEC/EN61010-2-032, IEC/EN 61010-2-031 etc standard;
APPLIATIONS
Power system transient current and harmonic current; Surge current; Lightning current test; Capacitor charging and discharging current test; Pulse current test of welding machine shall be carried out; Pulsed charged particle beam current, Plasma current; Pulse current generated by high voltage, such as microwave or X-ray modulator, particle accelerator, etc; It is not suitable for sampling resistance due to the limitation of grounding circuit noise, insertion impedance or high voltage isolation; Other 0.5Hz-200MHz band transient or pulse current test application scenarios;

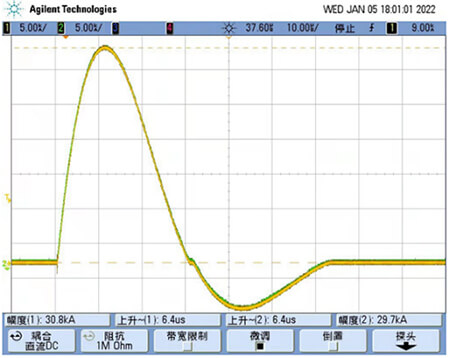

MEASUREMENT WAVEFORM
PARAMETERS
| Technical parameters | |
|---|---|
| Sensitivity | 1V/A, 0.1V/A |
| Accuracy | 1.0% |
| Output resistance | 50Ohms |
| Maximum peak current | 500A, 5kA |
| Maximum RMS current | 7.5A, 65A |
| Current Droop rate | 80%/mS, 0.8%/mS |
| Useable rise time | 20nS |
| Current time product | 2.5A · s Max, 0.5A · s Max |
| Frequency range | 0.5Hz-20MHz, 10Hz-200MHz |
| Voltage output (corresponding to 50kA) | 100V / 150V / 250V / 500V |
| I/f figure | 0.002 peak Amperes/Hz, 0.2 peak Amperes/Hz |
| Output connector | BNC |
| Operating temperature | 0°C to +65°C |
| Dimensions (L x W x H) (mm) | 123 x 108 x 26 |
| Weight (g) | 625 |
| Holding wire diameter (mm) | φ50 |
| Color | Blue & Grey |
SELECTION GUIDE
| MODEL | DIAMETER(mm) | OUTPUT(V/A) | CURRET PEAK-VALUE(A) | CURRENT RMS(A) | 3dB LF(Hz) | 3dB BH(Hz) |
|---|---|---|---|---|---|---|
| M50-1 | 50 | 1 | 500 | 7.5 | 100 | 20M |
| M50-2 | 50 | 0.1 | 5000 | 65 | 1 | 20M |
| Notes: Can be customized wide-band current transformers according to user requirements! | ||||||
