S120 30A/300A/3000A 200kHz BANDWIDTH HIGH PRECISION OSCILLOSCOPE CURRENT MEASUREMENT CLAMP
INTRODUCE
The S120 current clamp is a high performance AC clamp on current transformer probe with excellent transformation and low phase shift. The high quality magnetic permalloy core and uniform windings provide for accurate measurements up to 3000AAC/2000AAC/1000AAC/500AAC. The "ring type" jaw permits good magnetic conduction and cable positionings. Provide excellent RMS capabilities and reliable signal reproduction.
The S120 clamp on ct is well suited for power quality applications where high accuracy and low phase shift along with wide frequency from 10Hz to 2MHz are important. Measurement range is 100mA to 3000A.
The S120 clamp on current transformer is a general purpose 3000A AC clamp current probe transformer designed for use with DMMs & BNC, cable fault analysis and loggers instruments that have a current input. It has a 1000:1 or 2000:1 ratio and output of 1mA per amp or 1mV per amp measured in the jaw. The S120 has an integral 2.5m or 5m lead terminated. The rounded jaw design on this clamp probe makes it well-suited for cable fault analysis applications where high accuracy and low phase shift and wide frequency.
All of our CT current clamp are strictly comply IEC60044-1, IEC 61869-2, ANSI/IEEE C57.13, GB1208-2006, GB/T 20840.1-2010, GB/T 20840.2-2014, GB/T 22071.1-2018, IEC/EN61010-2-032, IEC/EN 61010-2-031.
FEATURES
Measurement range of 1mA to 3000A AC;
Improved ergonomic design & easy operation;
High content nickel metal permalloy core;
High precision 0.1% for current measurement;
APPLIATIONS
Cable fault analysis;
Large industrial loads;
Power quality monitoring;
Multimeter;
Power quality analyzer(PQA);
Power and harmonic meters;
Phase angle meter;
Energy meter calibrator;
Measuring around cable bundles;
Power meter;
Power load monitoring;
Data logging/recording;
CT secondary current detection;
Earth resistance meter;
Energy sub-meters;
Waveform analysis(oscilloscopes meter);

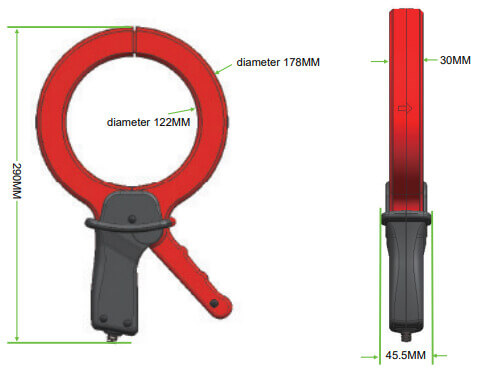

OUTLINE DRAWING
PARAMETERS
| Electrical parameters | |
|---|---|
| Ratio | 1000:1, 2000:1, 2000:5, 3000:5 (customized) |
| Accuracy Class | 0.1%, 0.2%, 0.5% |
| Primary current | 0-3000A AC, 0-2000A AC, 0-1000A AC |
| Signal output | 1mA/A, 1mV/A, 10mV/A, 100mV/A |
| Secondary voltage | 0-1V AC, 0-2V AC, 0-5V AC;(customized) |
| Secondary current | 0-500mA, 0-1A, 0-2A or 0-5A AC;(customized) |
| Max. Cont. Input current | 3600A |
| Load capacity | ≤20Ω, standard 4Ω |
| Over voltage category | CAT III 600V |
| Frequency range | 10Hz-2MHz |
| Dielectric strength | 3KV 50Hz/60Hz at 1minute |
| Temperature range | -40°C to +55°C |
| Output | 2.5 meter cable with D01 or BNC connector |
| Max. voltage not insulated conductors | 720V |
| Standard | EN 61010-1, EN 61010-2-032, EN 61010-2-031 IEC60044-1, & IEC61869-2, 600V CAT III |
| Installation | Clamp type |
| Range | 1000A, 2000A, 3000A optional |
| Output mode | Lead output(2.5m, 5m, 10m) |
| Connector | BNC, 4mm banana, signal cable(2 cores), customized |
| Accuracy (3000A Range) | |
| 0-10A | ≤0.5% |
| 10-100A | ≤0.2% |
| 100-3000A | ≤0.1% |
| Phase Shift(3000A Range) | |
| 0-10A | ≤0.5° |
| 10-100A | ≤0.2° |
| 100-3000A | ≤0.1° |
| Mechanical parameters | |
| Dimensions (L x W x H) (mm) | 178 x 290 x 30 |
| Weight (g) | 1200 |
| Holding wire diameter (mm) | φ120 |
| Max. jaw opening (mm) | 120 |
| Jaw color | Red & Grey |
| Material | PC+ABS, UL94 V0 |
SELECTION GUIDE
| Model | Rate Current | Max Current | Secondary Current | Coil Ratio | Burden Resistance | Accuracy |
|---|---|---|---|---|---|---|
| S120-200 | 200A | 240A | 5A | 40:1 | 2.5VA | 0.5% |
| S120-300 | 300A | 360A | 5A | 60:1 | 2.5VA | 0.5% |
| S120-400 | 400A | 480A | 5A | 80:1 | 2.5VA | 0.5% |
| S120-500 | 500A | 600A | 5A | 100:1 | 2.5VA | 0.5% |
| S120-600 | 600A | 720A | 5A | 120:1 | 2.5VA | 0.5% |
| S120-800 | 800A | 960A | 5A | 160:1 | 2.5VA | 0.5% |
| S120-1000 | 1000A | 1200A | 5A | 200:1 | 2.5VA | 0.5% |
| S120-1500 | 1500A | 1800A | 5A | 300:1 | 2.5VA | 0.5% |
| S120-2000 | 2000A | 2400A | 5A | 400:1 | 2.5VA | 0.5% |
| S120-3000 | 3000A | 3600A | 5A | 600:1 | 2.5VA | 0.5% |
| S120A1-200 | 200A | 240A | 1A | 200:1 | customized | 0.2% |
| S120A1-300 | 300A | 360A | 1A | 300:1 | customized | 0.2% |
| S120A1-400 | 400A | 480A | 1A | 400:1 | customized | 0.2% |
| S120A1-500 | 500A | 600A | 1A | 500:1 | customized | 0.2% |
| S120A1-600 | 600A | 720A | 1A | 600:1 | customized | 0.2% |
| S120A1-800 | 800A | 960A | 1A | 800:1 | customized | 0.2% |
| S120A1-1000 | 1000A | 1200A | 1A | 1000:1 | customized | 0.1% |
| S120A1-1500 | 1500A | 1800A | 1A | 1500:1 | customized | 0.1% |
| S120A1-2000 | 2000A | 2400A | 1A | 2000:1 | customized | 0.1% |
| S120A1-3000 | 3000A | 3600A | 1A | 3000:1 | customized | 0.1% |
| S120A2-500 | 500A | 600A | 500mA | 1000:1 | customized | 0.1% |
| S120A2-600 | 600A | 720A | 500mA | 1200:1 | customized | 0.1% |
| S120A2-800 | 800A | 960A | 500mA | 1500:1 | customized | 0.1% |
| S120A2-1000 | 1000A | 1200A | 500mA | 2000:1 | customized | 0.1% |
| S120A3-800 | 800A | 960A | 400mA | 2000:1 | customized | 0.1% |
| S120A3-1000 | 1000A | 1200A | 400mA | 2500:1 | customized | 0.1% |
| S120A4-250 | 250A | 300A | 250mA | 1000:1 | customized | 0.1% |
| S120A4-500 | 500A | 600A | 250mA | 2000:1 | customized | 0.1% |
| S120A4-1000 | 1000A | 1200A | 250mA | 4000:1 | customized | 0.1% |
| S120V5-200 | 200A | 240A | 1V | 1000:1 | customized | 0.1% |
| S120V5-300 | 300A | 360A | 1V | 1000:1 | customized | 0.1% |
| S120V5-400 | 400A | 480A | 1V | 1000:1 | customized | 0.1% |
| S120V5-500 | 500A | 600A | 1V | 1000:1 | customized | 0.1% |
| S120V5-600 | 600A | 720A | 1V | 1000:1 | customized | 0.1% |
| S120V5-800 | 800A | 960A | 1V | 1000:1 | customized | 0.1% |
| S120V5-1000 | 1000A | 1200A | 1V | 1000:1 | customized | 0.1% |
| S120V5-2000 | 2000A | 2400A | 2V | 1000:1 | customized | 0.1% |
| S120V5-3000 | 3000A | 3600A | 3V | 1000:1 | customized | 0.2% |
| S120V6-200 | 200A | 240A | 5V | 1000:1 | customized | 0.1% |
| S120V6-300 | 300A | 360A | 5V | 1000:1 | customized | 0.1% |
| S120V6-400 | 400A | 480A | 5V | 1000:1 | customized | 0.1% |
| S120V6-500 | 500A | 600A | 5V | 1000:1 | customized | 0.1% |
| S120V6-600 | 600A | 720A | 5V | 1000:1 | customized | 0.1% |
| S120V6-800 | 800A | 960A | 5V | 1000:1 | customized | 0.1% |
| S120V6-1000 | 1000A | 1200A | 5V | 1000:1 | customized | 0.1% |
| S120V6-2000 | 2000A | 2400A | 5V | 1000:1 | customized | 0.1% |
| S120V6-3000 | 3000A | 3600A | 5V | 1000:1 | customized | 0.2% |
| S120V8-200 | 200A | 240A | 10V | 1000:1 | customized | 0.1% |
| S120V8-300 | 300A | 360A | 10V | 1000:1 | customized | 0.1% |
| S120V8-400 | 400A | 480A | 10V | 1000:1 | customized | 0.1% |
| S120V8-500 | 500A | 600A | 10V | 1000:1 | customized | 0.1% |
| S120V8-600 | 600A | 720A | 10V | 1000:1 | customized | 0.1% |
| S120V8-800 | 800A | 960A | 10V | 1000:1 | customized | 0.1% |
| S120V8-1000 | 1000A | 1200A | 10V | 1000:1 | customized | 0.1% |
| S120V5-3000 | 30/300/3000A | 36/360/3600A | 1V or 3V | 1000:1 | customized | 0.2% |
| Notes: Can be customized clamp on current transformers according to user requirements! | ||||||
CLAMP ON CURRENT TRANSFORMER SELECTION MODEL
| Model | Current Range | Max Current | Secondary Output Signal | Ratio | Resistance | Accuracy |
|---|---|---|---|---|---|---|
| S50 | 0-1200A | 1200A | 250mA, 500mA, 1A, 5A, 333mV, 1V, 2V, 5V, 10V etc | 1000:1, 2000:1, 4000:1 etc | 2.5VA, 1VA, 4Ω, 10Ω, 20Ω etc | 0.1%, 0.2%, 0.5% |
| S120 | 0-3000A | 3600A | 250mA, 500mA, 1A, 2A, 5A, 333mV, 1V, 2V, 5V, 10V etc | 600:1, 1000:1, 2000:1, 4000:1 etc | 2.5VA, 1VA, 4Ω, 10Ω, 20Ω etc | 0.1%, 0.2%, 0.5% |
| P8 | 0-10A | 20A | 2mA, 2.5mA, 5mA, 10mA, 20mA, 333mV, 1V, 2V, 5V etc | 1000:1, 2000:1, 2500:1, 4000:1 etc | 4Ω, 10Ω, 20Ω etc | 0.1%, 0.2%, 0.5% |
| P18 | 0-200A | 240A | 2mA, 2.5mA, 5mA, 10mA, 20mA, 333mV, 1V, 2V, 5V etc | 1000:1, 2000:1, 2500:1, 4000:1 etc | 4Ω, 10Ω, 20Ω etc | 0.1%, 0.2%, 0.5% |
| P50 | 0-1000A | 1200A | 250mA, 500mA, 1A, 5A, 333mV, 1V, 2V, 5V, 10V etc | 1000:1, 2000:1, 2500:1, 4000:1 etc | 2.5VA, 1VA, 4Ω, 10Ω, 20Ω etc | 0.1%, 0.2%, 0.5% |
| P110 | 0-1500A | 1500A | 250mA, 500mA, 1A, 2A, 5A, 333mV, 1V, 2V, 5V, 10V etc | 200:1, 600:1, 1000:1, 2000:1 etc | 2.5VA, 1VA, 4Ω, 10Ω, 20Ω etc | 0.1%, 0.2%, 0.5% |
| Q8A1 | 20A | 20A | 2mA, 2.5mA, 5mA, 10mA, 20mA, 333mV, 1V, 2V, 5V etc | 1000:1, 2000:1, 2500:1, 4000:1 etc | 4Ω, 10Ω, 20Ω etc | 0.1%, 0.2%, 0.5% |
| Q8A2 | 20A | 20A | 2mA, 2.5mA, 5mA, 10mA, 20mA, 333mV, 1V, 2V, 5V etc | 1000:1, 2000:1, 2500:1, 4000:1 etc | 4Ω, 10Ω, 20Ω etc | 0.1%, 0.2%, 0.5% |
| Q13 | 100A | 120A | 2mA, 2.5mA, 5mA, 10mA, 20mA, 333mV, 1V, 2V, 5V etc | 1000:1, 2000:1, 2500:1, 4000:1 etc | 4Ω, 10Ω, 20Ω etc | 0.1%, 0.2%, 0.5% |
| Q20A | 200A | 240A | 2mA, 2.5mA, 5mA, 10mA, 20mA, 333mV, 1V, 2V, 5V etc | 1000:1, 2000:1, 2500:1, 4000:1 etc | 4Ω, 10Ω, 20Ω etc | 0.1%, 0.2%, 0.5% |
| Q20B | 200A | 240A | 2mA, 2.5mA, 5mA, 10mA, 20mA, 333mV, 1V, 2V, 5V etc | 1000:1, 2000:1, 2500:1, 4000:1 etc | 4Ω, 10Ω, 20Ω etc | 0.1%, 0.2%, 0.5% |
| Q40 | 500A | 600A | 200mA, 250mA, 500mA, 333mV, 1V, 2V, 5V, 10V etc | 1000:1, 2000:1, 2500:1, 4000:1 etc | 4Ω, 10Ω, 20Ω etc | 0.1%, 0.2%, 0.5% |
| Q50A | 1000A | 1000A | 250mA, 500mA, 1A, 5A, 333mV, 1V, 2V, 5V, 10V etc | 1000:1, 2000:1, 2500:1, 4000:1 etc | 2.5VA, 1VA, 4Ω, 10Ω, 20Ω etc | 0.1%, 0.2%, 0.5% |
| Q70 | 1000A | 1200A | 250mA, 500mA, 1A, 5A, 333mV, 1V, 2V, 5V, 10V etc | 200:1, 600:1, 1000:1, 2000:1 etc | 2.5VA, 1VA, 4Ω, 10Ω, 20Ω etc | 0.1%, 0.2%, 0.5% |
| Q110 | 1500A | 1500A | 250mA, 500mA, 1A, 5A, 333mV, 1V, 2V, 5V, 10V etc | 200:1, 600:1, 1000:1, 2000:1 etc | 2.5VA, 1VA, 4Ω, 10Ω, 20Ω etc | 0.1%, 0.2%, 0.5% |
| Q125 | 2000A | 2400A | 500mA, 1A, 5A, 333mV, 1V, 2V, 5V, 10V etc | 200:1, 600:1, 1000:1, 2000:1 etc | 2.5VA, 1VA, 4Ω, 10Ω, 20Ω etc | 0.2%, 0.5% |
| Q125B | 3000A | 3600A | 250mA, 500mA, 1A, 5A, 333mV, 1V, 2V, 5V, 10V etc | 600:1, 1000:1, 2000:1, 4000:1 etc | 2.5VA, 1VA, 4Ω, 10Ω, 20Ω etc | 0.2%, 0.5% |
| Q150 | 3000A | 3600A | 500mA, 1A, 5A, 333mV, 1V, 2V, 5V, 10V etc | 600:1, 1000:1, 2000:1, 4000:1 etc | 2.5VA, 1VA, 4Ω, 10Ω, 20Ω etc | 0.2%, 0.5% |
| XQ13 | 100A | 120A | 2mA, 2.5mA, 5mA, 10mA, 20mA, 333mV, 1V, 2V, 5V etc | 1000:1, 2000:1, 2500:1, 4000:1 etc | 4Ω, 10Ω, 20Ω etc | 0.1%, 0.2%, 0.5% |
| XQ20 | 200A | 240A | 2mA, 2.5mA, 5mA, 10mA, 20mA, 333mV, 1V, 2V, 5V, 10V etc | 1000:1, 2000:1, 2500:1, 4000:1 etc | 4Ω, 10Ω, 20Ω etc | 0.1%, 0.2%, 0.5% |
| HQ15 | 100A | 120A | 2mA, 2.5mA, 5mA, 10mA, 20mA, 333mV, 1V, 2V, 5V etc | 1000:1, 2000:1, 2500:1, 4000:1 etc | 4Ω, 10Ω, 20Ω etc | 0.1%, 0.2%, 0.5% |
