GFJDZW-20KV 15KV 17KV 20KV 22KV DOUBLE POLE SINGLE PHASE VOLTAGE TRANSFORMER OUTDOOR

gfjdzw-20kv_gfuve_20kv_voltage_transformer_outdoor
Request a quote
Download Catalogue/Video

INTRODUCE

GFJDZW-20KV 20KV High Accuracy Outdoor Voltage transformers are designed for outdoor metering and relaying applications. This product has the characteristics of high precision and large capacity, and can be customized according to customer requirements.
The primary and secondary coils are wound using special winding and shielding techniques for improved voltage stress distribution.Each coil is carefully insulated with mylar film to provide a high dielectric medium between layers. The completed winding structure and double-loop cores are assembled to a support frame.
For insulation and protection, the assembly is cast in hydrophobiccycloaliphatic epoxy (HCEP) using automatic vacuum pressure. The HCEP material offers superior arc track, ozone, and ultraviolet-resistive properties while maintaining physical strength. The hydrophobic surface properties of HCEP ensure highly reliable performance in wet, humid, or polluted environments.
It can be used for medial voltage AIS, or can be used for medial voltage switchgears. They can operate in all kinds of environments (such as wide range temperature (-50~70℃), high altitude, high humidity, high pollution or salt). This model GFJDZW-20KV outdoor voltage transformer is also as voltage source to supply 220V voltage.
All of our indoor voltage transformers are strictly comply IEC60044-2, IEC 61869-1,3, IEC 60186, ANSI/IEEE C57.13, BS 7729, GB1207-2006, GB/T 20840.3-2013, GB/T 22071.2-2017, GB/T 20840.102-2020.

FEATURES

15KV, 17KV, 20KV, 22KV Outdoor using; IEC60044-2, IEC 61869-1,3 & ANSI/IEEE C57.13 standards; Rated voltages up to 24kV; Reasonable structure and robust construction; Measurement or protection voltage transformer; Rated basic insulation levels (BIL) up to 125kV; High quality silicon steel; Convenient installation, suitable for installation in any location; Excellent short circuit and thermal withstand capabilities; Hydrophobic cycloaliphatic epoxy resin (HCEP); Weight: 56KG; Material: epoxy resin & silicon rubber; Accuracy class: 0.2, 0.5, 1, 3, 3P, 6P; Surface creepage distance: 860mm; Primary with fuse protection; Partial discharge measurements exceed the IEEE/IEC and CAN/CSA requirements; Convenient installation, suitable for installation in any location; Excellent short circuit and thermal withstand capabilities; Limiting therminal output 3000(VA); Rated voltage primary (KV): 15/√3, 15, 17/√3, 17, 20/√3, 20, 22/√3, 22; Secondary voltage (KV): 0.1, 0.12, 0.22, 0.24, or with /√3;

APPLIATIONS

Electric power bureau; Power plant; Oil, gas company; Rail way; Coal mine; Power station; Distribution system; Industrial and mining enterprises; MV power quality analyzer; Measuring instrument; Energy meter; Power meter;

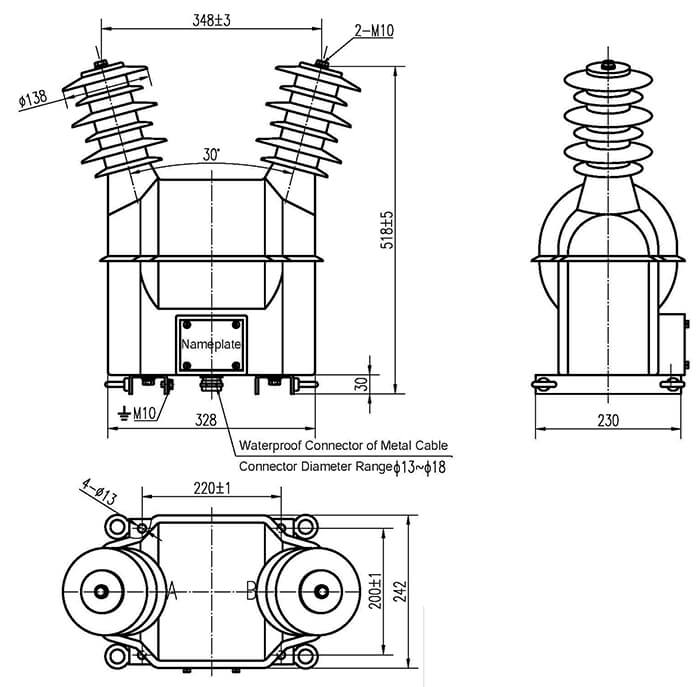

OUTLINE DRAWING

PARAMETERS

Electrical parameters　
Standards IEC60044-2; IEC 61869-1,3; ANSI/IEEE C57.13; GB1207-2006; GB/T 20840.1-2010, GB/T 20840.3-2013, GB/T 22071.2-2017, GB/T 20840.102-2020，BS 7729, IEC 60186
Accuracy Class 0.2, 0.5, 1, 3, 3P, 6P
Rated Voltage 22KV, 20KV, 17KV, 15KV
Highest system voltage 24KV
Rated load ≤30VA or 80VA or 200VA
Thermal rating burden 3000VA
Secondary voltage output 100V, 110V, 115V, 120V, 220V, 240V, 380V
Rated frequency 50/60Hz
Cosø 0.8 (lag)
Phase number Single phase
Core 1, 2
Connection method Delta, star
With fuse Yes, 0.2A
Using type Outdoor
Application Measurement and protection
Rated insulation level 24/50/125KV
Insulation class E or B
Class of pollution IV
Mechanical parameters 　
Material Epoxy resin + silicone sleeve
Dimensions (W×D×H) (mm) 328×242×518
Weight (kg) 56
Color Red or grey, customized
Working conditions 　
Operating temperature -40°C to +70°C
Storage temperature -40°C to +70°C
Daily average temp <+40°C
Relative Air Humidity 15%-85%
Environment Outdoors
Altitude <3000 meters
Conditions No existence of severely begrimed, erosive and radioactive gas in the air. Continuous working under the rated voltage is allowed.

SELECTION GUIDE

Model Rated Voltage Ratio(KV) Accuracy class and Rated secondary output (VA) Limited output (VA) Rated insulation level(KV) Surface creepage distance (mm) Primary fuse (A) Weight (KG)
GFJSZW-22KV 22000/100 0.2---40
0.5---100
1---250
3---500		 800 24/65/125 860 0.2 56
22000/220
22000/100/100 0.2/0.2---20/20
0.2/0.5---20/30
0.5/0.5---50/50		 400/400
22000/220/220 500/800
GFJDZXW-22KV 22000/√3/100/√3 100/√3 0.2/6P(3P)---30/100
0.5/6P(3P)---60/100
1/6P(3P)---150/100
3/6P(3P)---250/100		 600
22000/√3/100/√3 100/√3 100/√3 0.2/0.2/6P(3P)---15/15/100
0.2/0.5/6P(3P)---15/15/100
0.5/0.5/6P(3P)---40/40/100		 300/300
GFJSZW-20KV 20000/100 0.2---40
0.5---100
1---250
3---500		 800 24/65/125 860 0.2 56
22000/220
22000/100/100 0.2/0.2---20/20
0.2/0.5---20/30
0.5/0.5---50/50		 400/400
22000/220/220 500/800
GFJDZXW-20KV 22000/√3/100/√3 100/√3 0.2/6P(3P)---30/100
0.5/6P(3P)---60/100
1/6P(3P)---150/100
3/6P(3P)---250/100		 600
22000/√3/100/√3 100/√3 100/√3 0.2/0.2/6P(3P)---15/15/100
0.2/0.5/6P(3P)---15/15/100
0.5/0.5/6P(3P)---40/40/100		 300/300
GFJSZW-17KV 17000/100 0.2---40
0.5---100
1---250
3---500		 800 24/65/125 860 0.2 56
17000/220
17000/100/100 0.2/0.2---20/20
0.2/0.5---20/30
0.5/0.5---50/50		 400/400
17000/220/220 500/800
GFJDZXW-17KV 17000/√3/100/√3 100/√3 0.2/6P(3P)---30/100
0.5/6P(3P)---60/100
1/6P(3P)---150/100
3/6P(3P)---250/100		 600
17000/√3/100/√3 100/√3 100/√3 0.2/0.2/6P(3P)---15/15/100
0.2/0.5/6P(3P)---15/15/100
0.5/0.5/6P(3P)---40/40/100		 300/300
GFJSZW-15KV 15000/100 0.2---40
0.5---100
1---250
3---500		 800 24/65/125 860 0.2 56
15000/220
15000/100/100 0.2/0.2---20/20
0.2/0.5---20/30
0.5/0.5---50/50		 400/400
15000/220/220 500/800
GFJDZXW-15KV 15000/√3/100/√3 100/√3 0.2/6P(3P)---30/100
0.5/6P(3P)---60/100
1/6P(3P)---150/100
3/6P(3P)---250/100		 600
15000/√3/100/√3 100/√3 100/√3 0.2/0.2/6P(3P)---15/15/100
0.2/0.5/6P(3P)---15/15/100
0.5/0.5/6P(3P)---40/40/100		 300/300
