GFJDZW-33KV 25KV 27KV 33KV 34.5KV 35KV 36KV DOUBLE POLE SINGLE PHASE VOLTAGE TRANSFORMER OUTDOOR

gfjdzw-33kv_double_pole_outdoor_voltage_transformer
Request a quote
Download Catalogue/Video

INTRODUCE

GFJDZW-33KV 33KV High Accuracy Outdoor Voltage transformers are designed for outdoor metering and relaying applications. This product has the characteristics of high precision and large capacity, and can be customized according to customer requirements.
The primary and secondary coils are wound using special winding and shielding techniques for improved voltage stress distribution.Each coil is carefully insulated with mylar film to provide a high dielectric medium between layers. The completed winding structure and double-loop cores are assembled to a support frame.
For insulation and protection, the assembly is cast in hydrophobiccycloaliphatic epoxy (HCEP) using automatic vacuum pressure. The HCEP material offers superior arc track, ozone, and ultraviolet-resistive properties while maintaining physical strength. The hydrophobic surface properties of HCEP ensure highly reliable performance in wet, humid, or polluted environments.
It can be used for medial voltage AIS, or can be used for medial voltage switchgears. They can operate in all kinds of environments (such as wide range temperature (-50~70℃), high altitude, high humidity, high pollution or salt). This model GFJDZW-33KV outdoor voltage transformer is also as voltage source to supply 220V voltage.
All of our indoor voltage transformers are strictly comply IEC60044-2, IEC 61869-1,3, IEC 60186, ANSI/IEEE C57.13, BS 7729, GB1207-2006, GB/T 20840.3-2013, GB/T 22071.2-2017, GB/T 20840.102-2020.

FEATURES

25KV, 27KV, 30KV, 33KV, 34.5KV, 35KV, 36KV outdoor using; IEC60044-2, IEC 61869-1,3 & ANSI/IEEE C57.13 standards; Rated voltages up to 36kV; Reasonable structure and robust construction; Measurement or protection voltage transformer; Rated basic insulation levels (BIL) up to 250kV; High quality silicon steel; Convenient installation, suitable for installation in any location; Excellent short circuit and thermal withstand capabilities; Hydrophobic cycloaliphatic epoxy resin (HCEP); Weight: 90KG; Material: epoxy resin & silicon rubber; Accuracy class: 0.2, 0.5, 1, 3, 3P, 6P; Surface creepage distance: 1300mm; Primary with fuse protection; Partial discharge measurements exceed the IEEE/IEC and CAN/CSA requirements; Convenient installation, suitable for installation in any location; Excellent short circuit and thermal withstand capabilities; Limiting therminal output 3000(VA); Rated voltage primary (KV): 25/√3, 25, 27/√3, 27, 30/√3, 30, 33/√3, 33, 34.5/√3, 34.5, 35/√3, 35, 36/√3, 36; Secondary voltage (KV): 0.1, 0.12, 0.22, 0.24, or with /√3;

APPLIATIONS

Electric power bureau; Power plant; Oil, gas company; Rail way; Coal mine; Power station; Distribution system; Industrial and mining enterprises; MV power quality analyzer; Measuring instrument; Energy meter; Power meter;

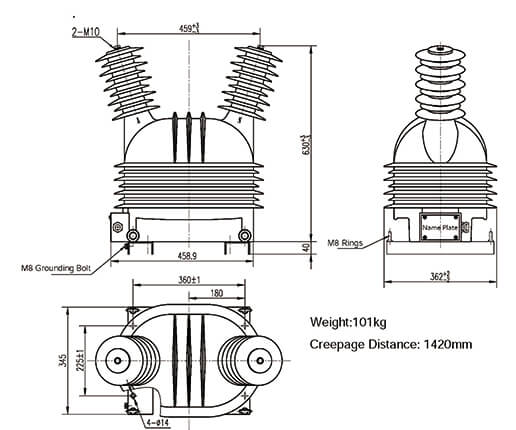

OUTLINE DRAWING

PARAMETERS

Electrical parameters　
Standards IEC60044-2; IEC 61869-1,3; ANSI/IEEE C57.13; GB1207-2006; GB/T 20840.1-2010, GB/T 20840.3-2013, GB/T 22071.2-2017, GB/T 20840.102-2020, BS 7729, IEC 60186
Accuracy Class 0.2, 0.5, 1, 3, 3P, 6P
Rated Voltage 36KV, 35KV, 34.5KV, 33KV, 30KV, 27KV, 25KV
Highest system voltage 36KV
Rated load ≤50VA or 80VA or 200VA
Thermal rating burden 3000VA
Secondary voltage output 100V, 110V, 115V, 120V, 220V, 240V, 380V
Rated frequency 50/60Hz
Cosø 0.8 (lag)
Phase number Single phase
Core 1, 2, 3
Connection method Delta, star
With fuse Yes, 0.2A
Using type Outdoor
Application Measurement and protection
Rated insulation level 42/90/250KV
Insulation class E or B
Class of pollution IV
Mechanical parameters 　
Material Epoxy resin + silicone sleeve
Dimensions (W×D×H) (mm) 459×362×630
Weight (kg) 101
Color Red or grey, customized
Operating conditions 　
Operating temperature -40°C to +70°C
Storage temperature -40°C to +70°C
Daily average temp <+40°C
Environment Outdoors
Altitude <3000 meters
Conditions No existence of severely begrimed, erosive and radioactive gas in the air. Permission of long-term operation under rated current.

SELECTION GUIDE

Model Rated voltage radio
(V)		 Accuracy class and Rated secondary output
(VA)		 Limited output
(VA)		 Rated insulation level
(KV) 		Surface creepage distance
(mm)		 Primary fuse
(A)		 Weight
(KG)
GFJDZW-35KV 35000/100 0.2---40
0.5---100
1---250
3---500 		800 24/65/125 1420 0.2 101
35000/220
35000/100/100 0.2/0.2---20/20
0.2/0.5---20/30
0.5/0.5---50/50		 400/400
35000/220/220 500/800
GFJDZXW-35KV 35000/√3/100/√3 100/√3 0.2/6P(3P)---30/100
0.5/6P(3P)---60/100
1/6P(3P)---150/100
3/6P(3P)---250/100 		600
35000/√3/100/√3 100/√3 100/√3 0.2/0.2/6P(3P)---15/15/100
0.2/0.5/6P(3P)---15/15/100
0.5/0.5/6P(3P)---40/40/100 		300/300
GFJDZW-34.5KV 34500/100 0.2---40
0.5---100
1---250
3---500 		800 24/65/125 1420 0.2 101
34500/220
34500/100/100 0.2/0.2---20/20
0.2/0.5---20/30
0.5/0.5---50/50		 400/400
34500/220/220 500/800
GFJDZXW-34.5KV 34500/√3/100/√3 100/√3 0.2/6P(3P)---30/100
0.5/6P(3P)---60/100
1/6P(3P)---150/100
3/6P(3P)---250/100 		600
34500/√3/100/√3 100/√3 100/√3 0.2/0.2/6P(3P)---15/15/100
0.2/0.5/6P(3P)---15/15/100
0.5/0.5/6P(3P)---40/40/100 		300/300
GFJDZW-33KV 33000/100 0.2---40
0.5---100
1---250
3---500 		800 24/65/125 1420 0.2 101
33000/220
33000/100/100 0.2/0.2---20/20
0.2/0.5---20/30
0.5/0.5---50/50		 400/400
33000/220/220 500/800
GFJDZXW-33KV 33000/√3/100/√3 100/√3 0.2/6P(3P)---30/100
0.5/6P(3P)---60/100
1/6P(3P)---150/100
3/6P(3P)---250/100 		600
33000/√3/100/√3 100/√3 100/√3 0.2/0.2/6P(3P)---15/15/100
0.2/0.5/6P(3P)---15/15/100
0.5/0.5/6P(3P)---40/40/100 		300/300
GFJDZW-27KV 27000/100 0.2---40
0.5---100
1---250
3---500 		800 24/65/125 1420 0.2 101
27000/220
27000/100/100 0.2/0.2---20/20
0.2/0.5---20/30
0.5/0.5---50/50		 400/400
27000/220/220 500/800
GFJDZW-27KV 27000/√3/100/√3 100/√3 0.2/6P(3P)---30/100
0.5/6P(3P)---60/100
1/6P(3P)---150/100
3/6P(3P)---250/100 		600
27000/√3/100/√3 100/√3 100/√3 0.2/0.2/6P(3P)---15/15/100
0.2/0.5/6P(3P)---15/15/100
0.5/0.5/6P(3P)---40/40/100 		300/300
GFJDZW-25KV 25000/100 0.2---40
0.5---100
1---250
3---500 		800 24/65/125 1420 0.2 101
25000/220
25000/100/100 0.2/0.2---20/20
0.2/0.5---20/30
0.5/0.5---50/50		 400/400
25000/220/220 500/800
GFJDZW-25KV 25000/√3/100/√3 100/√3 0.2/6P(3P)---30/100
0.5/6P(3P)---60/100
1/6P(3P)---150/100
3/6P(3P)---250/100 		600
25000/√3/100/√3 100/√3 100/√3 0.2/0.2/6P(3P)---15/15/100
0.2/0.5/6P(3P)---15/15/100
0.5/0.5/6P(3P)---40/40/100 		300/300
