GFJDZ9-15G 0.2 CLASS DOUBLE POLE 15KV INDOOR VOLTAGE TRANSFORMER
INTRODUCE
GFJDZ9-15G is one dry type indoor service voltage transformer. The core is encapsulated with type B epoxy resin which provides excellent internal dielectric properties and mechanical strength, ensuring a long mechanical and electrical life. The voltage transformer is maintenance free.
The core is built with high permeability grain oriented silicon steel laminations for low losses. The windings are copper wire with copper plate double isolation. The concentric distribution of the coils prevents magnetic flux leakage, achieving greater accuracy and higher capacity to withstand mechanical stresses in adverse operating conditions.Its limiting therminal output can reach 800(VA), It has excellent short circuit and thermal withstand capabilities.
All of our indoor voltage transformers are strictly comply IEC60044-2, IEC 61869-1,3, IEC60186, ANSI/IEEE C57.13, BS 7729, GB1207-2006, GB/T 20840.3-2013, GB/T 22071.2-2017, GB/T 20840.102-2020.
FEATURES
IEC60044-2, IEC61869-1,3; ANSI/IEEE C57.13, IEC60186 standard; Material: high quality silicon steel and epoxy resin; Rated basic insulation levels (BIL) up to 125kV; Measurement or Protection voltage transformer; Small size design; The PT design is suitable for plateau climate; Design using for more than 30years; The windings are copper wire with copper plate double isolation; Rated voltages up to 17.5kV; Measuring and protection class using; Hydrophobic cycloaliphatic epoxy resin (HCEP); Reasonable structure and robust construction; Partial discharge measurements exceed the IEEE/IEC and CAN/CSA requirements; Convenient installation, suitable for installation in any location; Excellent short circuit and thermal withstand capabilities; Accuracy class: 0.2, 0.5, 1, 3, 3P, 6P; Limiting therminal output 500(VA); Rated voltage ratio (KV): 15/0.1, 15/0.22, 15/0.1/0.1, 15/0.22/0.22; Weight: 60KG;
APPLIATIONS
Air insulation cabinet; MV switchgears; Ring network cabinet; Distribution system; MV power quality analyzer; Measuring instrument; Energy meter; Power meter; Coal mine; Power plant; Rail way; Capacitor banks; Power station; Power generation;

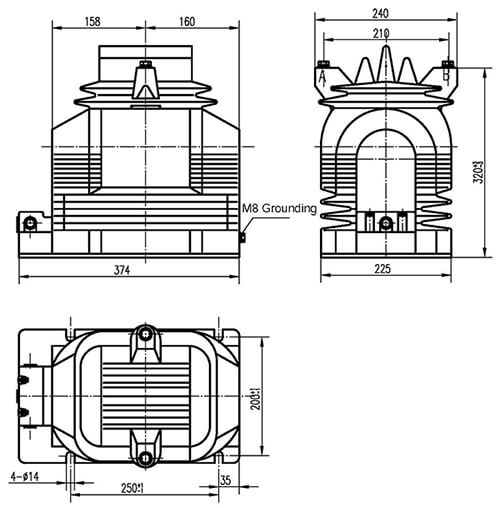

OUTLINE DRAWING
PARAMETERS
| Electrical parameters | |
|---|---|
| Standards | IEC60044-2; IEC61869-1,3; ANSI/IEEE C57.13; GB1207-2006; GB/T 20840.1-2010; GB/T 20840.3-2013; GB/T 22071.2-2017; GB/T 20840.102-2020; BS 7729; IEC60186 |
| Accuracy Class | 0.2, 0.5, 1, 3, 3P, 6P |
| Rated Voltage | 15KV |
| Highest system voltage | 17.5KV |
| Rated load | ≤30VA or 80VA or 200VA |
| Thermal rating burden | 800VA |
| Secondary voltage output | 100V, 110V, 120V, 220V, 240V, 380V |
| Rated frequency | 50/60Hz |
| Cosø | 0.8 (lag) |
| Phase number | Single |
| Core | 1, 2 |
| Connection method | Delta |
| Rated insulation level | 17.5/50/125KVKV |
| Insulation class | E or B |
| Class of pollution | II |
| Mechanical parameters | |
| Material | Epoxy resin |
| Dimensions (W×D×H) (mm) | 374 × 225 × 320 |
| Weight (kg) | 60 |
| Color | Red or customized |
| Working conditions | |
| Operating temperature | -40°C to +70°C |
| Storage temperature | -40°C to +70°C |
| Daily average temp | <+40°C |
| Relative Air Humidity | 15%-85% |
| Environment | Indoors |
| Altitude | <3000 meters |
| Conditions | No existence of severely begrimed, erosive and radioactive gas in the air. Continuous working under the rated voltage is allowed. |
SELECTION GUIDE
| Model | Rated Voltage Ratio(KV) | Accuracy class and Rated output (VA) | Limiting Therminal Output(VA) | Rated insulation level(KV) | ||||
|---|---|---|---|---|---|---|---|---|
| 0.2 | 0.5 | 1 | 0.2/3P | 0.2/6P | ||||
| GFJDZ9-15G | 15/0.1 | 30 | 50 | 250 | 500 | 17.5/50/125 | ||
| 15/0.22 | 30 | 50 | 250 | 500 | ||||
| 15/0.1/0.1 | 15/15 | 30/30 | 100/100 | 20/30 | 20/30 | 400/400 | ||
| 15/0.22/0.22 | 15/15 | 30/30 | 100/100 | 30/30 | 30/30 | 500/800 | ||
| GFJDZ9-17.5G | 17.5/0.1 | 30 | 50 | 250 | 500 | 17.5/50/125 | ||
| 17.5/0.22 | 30 | 50 | 250 | 500 | ||||
| 17.5/0.1/0.1 | 15/15 | 30/30 | 100/100 | 20/30 | 20/30 | 400/400 | ||
| 17.5/0.22/0.22 | 15/15 | 30/30 | 100/100 | 30/30 | 30/30 | 500/800 | ||
