Low Voltage Current Transformer
Low Voltage Current Transformer (LVCT) is a device used for measuring and protecting circuits, which can convert high current into low current for measurement and protection control. There are many varieties of low-voltage transformers. The more common ones are resin casting, ABS shell, etc., commonly used for voltage levels such as 0.5kv and 0.66kV, with accuracy levels of 0.5, 0.5s, 0.2, 0.2s, etc., with a primary input of 20-6000A and a secondary output of 1A or 5A, suitable for measurement or protection. Low voltage(600 / 720 V) current transformer meet requirements of IEEE C57.13 & IEC61869-2, IEC60044-1, GB1208-2006 standard, UL recognized & CSA approved, CNAS certificate.
-

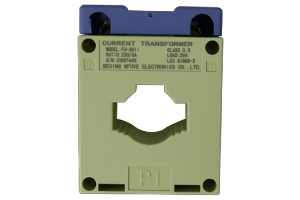

FU-30II 0.5 CLASS LOW COST WINDOW TYPE LOW VOLTAGE CURRENT TRANSFORMER 100A/200A/300A
- Up to 300A AC
- CLASS 0.2, 0.5, 1
- Window type design
- Most cost-effective
- 100/5A, 200/5A, 300/5A etc
- IEC60044-1/IEC 61869-2
-

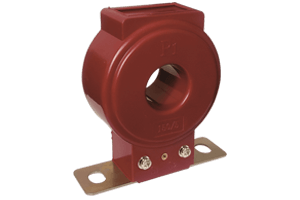

FU-LV30 100A-3000/5A RESIN CAST 0.2 CLASS ECONOMIC LOW VOLTAGE CURRENT TRANSFORMER
- 0.2, 0.2S, 0.5, 0.5S
- Up to 3000A AC
- Most cost-effective
- Window type design
- IEC60044-1/IEC 61869-2
- Φ30, φ45, φ50*103mm etc
-
FU-40II 200A 300A 400A 500A RING TYPE LOW COST LV CURRENT TRANSFORMER 5A
- IEC61869/IEC60044
- Up to 800A AC
- CLASS 0.2, 0.5, 1
- Window type design
- Most cost-effective
- 300/5A, 400/5A, 500/5A
-

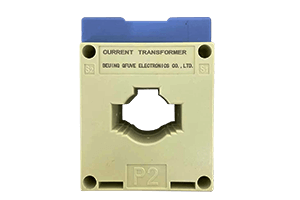

FU-50II 200A-800A LOW VOLTAGE WINDOW HIGH ACCURACY CURRENT TRANSFORMER
_200A_800A_LOW_VOLTAGE_WINDOW_HIGH_ACCURACY_CURRENT_TRANSFORMER.png)
- Measurement current transformer
- Up to 800A AC
- CLASS 0.2S, 0.2, 0.5S, 0.5
- Window type design
- Most cost-effective
- 400/5A, 500/5A, 600/5A etc
-

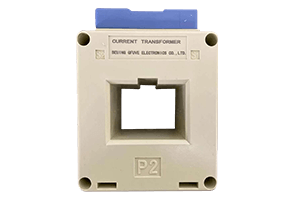

FU-60II HIGH PRECISION BUSBAR TYPE LV CURRENT TRANSFORMER 5A
- IEC61869-2/IEC60044-1
- Window type design
- Up to 1500A AC
- Most cost-effective
- CLASS 0.2, 0.5, 1
- 600/5A, 800/5A, 1000/5A etc
-

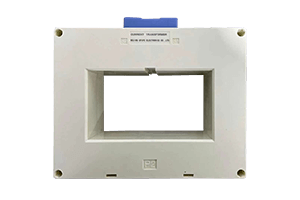

FU-80II WINDOW LOW VOLTAGE BUSBAR TYPE CURRENT TRANSFORMER 1000/5A 2000/5A
- Window type design
- CLASS 0.2, 0.5, 1
- Up to 2000A AC
- Most cost-effective
- 1000/5A, 1500/5A, 1600/5A etc
- Measuring current transformer
-

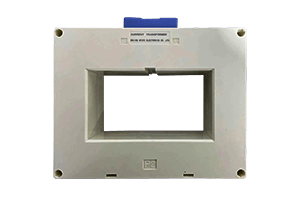

FU-100II 1000A 2000A 3000A 4000A WINDOW BUSBAR TYPE LOW VOLTAGE CURRENT TRANSFORMER
- Up to 4000A AC
- Window type design
- Most cost-effective
- CLASS 0.2, 0.5, 1
- 1000/2000/3000/4000/5A
- Measuring & Protective CT
