GFJLSZV-35W OUTDOOR COMBINED 33KV THREE PHASE INSTRUMENT CURRENT TRANSFORMER & VOLTAGE TRANSFORMER
INTRODUCE
This model GFJLSZV-35W outdoor combined current transformer and voltage transformer is used in 36KV, 35KV, 34.5KV, 33KV, 27KV, 25KV power system, for measuring and protection. It has been used in outdoor pole mounted and transmission line. This product has the characteristics of high efficiency and large capacity, and can be customized according to customer requirements. This model combined CT & VT is suite for 33KV 3P3W or 3P4W power system.
For insulation and protection, the assembly is cast in hydrophobic cycloaliphatic epoxy (HCEP) using automatic vacuum pressure. The HCEP material offers superior arc track, ozone, and ultraviolet-resistive properties while maintaining physical strength. Primary and secondary use pure electrolytic copper, both winding and core have high voltage shielding processing. The hydrophobic surface properties of HCEP ensure highly reliable performance in wet, humid, or polluted environments.
It can be used for less than 36KV distribution line, coal mine, power plant, rail way, factories...
The 33kV combined CT & VT are strictly comply IEC60044-1,2, IEC 61869-1,2,3, IEC60186, ANSI/IEEE C57.13, NBR6855, BS 7729, GB1207-2006, GB/T 20840.3-2013, GB/T 22071.2-2017, GB/T 20840.102-2020. It has been used many substations and wind power plants.
FEATURES
36KV, 35KV, 34.5KV, 33KV, 27KV, 25KV Outdoor; Rated basic insulation levels (BIL) up to 200KV; IEC60044, IEC 61869, GB/T 20840 & ANSI/IEEE C57.13 standards; Current transformer class: 0.2S, 0.2, 0.5S, 0.5, 1, 5P20, 5P10, 10P20, 10P15; Surface creepage distance more than 1300mm; Secondary current output 5A or 1A; Outdoor combined current transformer and voltage transformer design; Reasonable structure and robust construction; Convenient installation, suitable for installation in any location; Rated voltages up to 36KV; Voltage transformer accuracy class: 0.2, 0.5, 1, 3, 3P, 6P; Rated voltage primary (KV): 35/√3, 35, 33/√3, 33, 27/√3, 27; Secondary voltage (KV): 0.1√3, 0.1, 0.11√3, 0.11, 0.12√3, 0.12; Standard & special high accuracy metering classes; Multi windings post type outdoor design; Tin plated copper primary terminals; Material: epoxy(HCEP) + outdoor silicone cover; Using life: 30 years; Weight: 500KG;
APPLIATIONS
Distribution system; Power plant; Electric power bureau; Oil, gas company; Rail way; Power station; Coal mine; Energy meter; Power meter; Industrial and mining enterprises; MV power quality analyzer Measuring instrument; Substation metering and relaying; Primary metering cabinets; Solar power plant; Wind power plant;

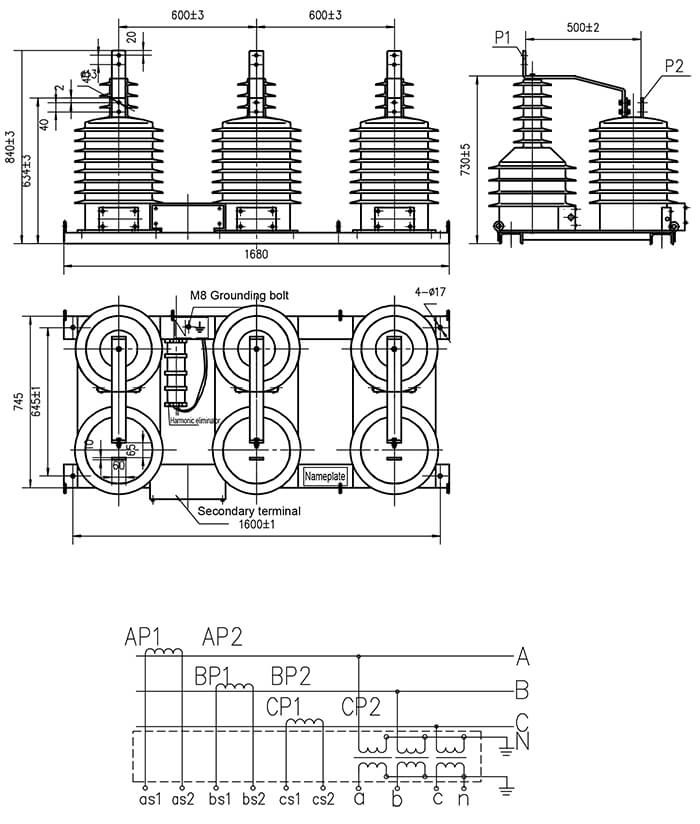

OUTLINE DRAWING
PARAMETERS
| Technical parameters | |
|---|---|
| Standards | IEC60044-1,2; IEC 61869-1,2,3; ANSI/IEEE C57.13; GB1207-2006; GB/T 20840.1-2010, GB/T 20840.3-2013, GB/T 22071.2-2017, GB/T 20840.102-2020, BS 7729, IEC 60186 |
| Rated voltage | 36KV, 35KV, 34.5KV, 33KV, 27KV, 25KV |
| Highest system voltage | 36KV |
| Current transformer parameters | |
| Accuracy class | 0.2S, 0.2, 0.5S, 0.5, 1 (IEC61869-2 standard) 5P20, 5P10, 10P10, 10P20, 10P5 |
| Rated primary current | 10-2000A |
| Rated load | ≤50VA |
| Rated frequency | 50Hz or 60Hz |
| Rated secondary current | 5A or 1A |
| Ratio | 10/5A, 15/5A... 100/5A, 200/5A, 300/5A... 2000/5A or 1A |
| Rated short-time thermal current | 80kA, 1S |
| Rated continuous thermal current | 120%I1n |
| Rated dynamic current | 160kA |
| Secondary winding power-frequency voltage | 3kV, 1min |
| Rated insulation level | 40/95/200KV |
| Instrument security factor | FS ≤10 |
| Short time withstand current | 31.5kA, 3sec |
| Creepage distance | 1300mm, 25mm/kV |
| Type | Outdoor, pole type |
| Voltage Transformer Parameters | |
| Accuracy class | 0.2, 0.5, 1, 3, 3P, 6P |
| Rated load | ≤3×100VA |
| Thermal rating burden | 600VA |
| Secondary voltage output | 100V, 110V, 115V, 120V, 220V, 240V |
| Rated frequency | 50/60Hz |
| Cosø | 0.8 (lag) |
| Phase number | Three phase |
| Core | 1, 2 |
| Connection method | Delta，star |
| Rated insulation level | 40/95/200KV |
| Insulation class | E |
| Class of pollution | IV |
| Mechanical parameters | |
| Material | Epoxy resin + silicone sleeve |
| Dimensions (W×D×H) (mm) | 1600×745×840 |
| Weight (kg) | 500 |
| Color | Red or customized |
| Working conditions | |
| Operating temperature | -40°C to +70°C |
| Storage temperature | -50°C to +70°C |
| Daily average temp | <+40°C |
| Relative Air Humidity | 15%-85% |
| Environment | Outdoors |
| Altitude | <3000meters |
| Conditions | No existence of severely begrimed, erosive and radioactive gas in the air. Continuous working under the rated voltage is allowed. |
SELECTION GUIDE
| Model | Rated voltage radio(V) | Accuracy class and rated secondary output(VA) | Limited output(VA) | Rated insulation level(KV) | Surface creepage distance (mm) | Weight(KG) |
|---|---|---|---|---|---|---|
| GFJLSZV-36W | 10-2000A/5A or 1A 36000/√3/ 100/√3 /100 |
0.2S---3×15 0.2---3×30 0.2/6P(3P)---3×30/100 0.5/6P(3P)---3×60/100 1/6P(3P)---3×100/100 3/6P(3P)---3×200/100 |
3×600 | 40/95/200KV | 570 | 500 |
| GFJLSZV-35W | 10-2000A/5A or 1A 35000/√3/ 100/√3 /100 |
40/95/200KV | ||||
| GFJLSZV-34.5W | 10-2000A/5A or 1A 34500/√3/ 100/√3 /100 |
40/95/200KV | ||||
| GFJLSZV-33W | 10-2000A/5A or 1A 33000/√3/ 100/√3 /100 |
3 × 500 | 40/95/200KV | |||
| GFJLSZV-27W | 10-2000A/5A or 1A 27000/√3/ 100/√3 /100 |
3 × 500 | 40/95/200KV | |||
| GFJLSZV-25W | 10-2000A/5A or 1A 25000/√3/ 100/√3 /100 |
3 × 500 | 40/95/200KV |
