Electronic Current Transformer
An electronic transformer is a power distribution device consisting of one or more voltage or current sensors connected to a transmission system and a secondary converter, used to transmit quantities proportional to those being measured, to supply measuring instruments, meters, and relay protection or control devices. In the case of a digital interface, a group of electronic current transformers share a merging unit to accomplish this function.
-
GFECT-3PS1 MEDIUM VOLTAGE RESIN CAST THREE PHASE ELECTRONIC CURRENT TRANSFORMER
- Rated voltages up to 12 kV
- Accuracy 0.5s/10P10
- IEC60044-8/IEC 61869-6
- Diameter 82mm
- 20 years life design
- -40℃~ +70℃working temperature
-

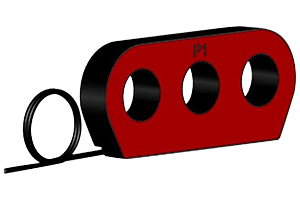

GFECT-3PS2 MEDIUM VOLTAGE INDOOR THREE PHASE ELECTRONIC CURRENT TRANSFORMER 600A
- Rated voltages up to 24 kV
- Accuracy 0.5s/10P10
- IEC60044-8/IEC 61869-6
- Diameter 83mm
- 20 years life design
- -40℃~ +70℃working temperature
-

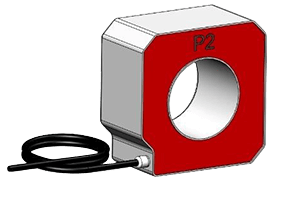

GFECT-1PD1 MV SINGLE PHASE LOW-POWER CONSUMPTION ELECTRONIC CURRENT TRANSFORMER
- Rated voltages up to 40.5kV
- Accuracy 0.5s/5P10
- IEC60044-8/IEC 61869-6
- Diameter 105mm
- 20 years life design
- -40℃~ +70℃working temperature
-

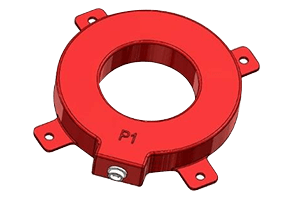

GFECT-1PD2 MEDIUM VOLTAGE LOW-POWER CONSUMPTION SINGLE PHASE ELECTRONIC CURRENT TRANSFORMER
- Rated voltages up to 40.5kV
- Accuracy 0.5s/5P10
- IEC60044-8/IEC 61869-6
- Diameter 120mm
- 20 years life design
- -40℃~ +70℃working temperature
