Miniature Current Transformer
Miniature current transformers (including Miniature current converters) have no resistance on the primary side, while ordinary Miniature current transformers are transformers with parallel resistors on the secondary side, outputting current. The Miniature current transformer in the miniature current transformer is a resistor connected in parallel on the secondary side and outputs voltage. Miniature current transformers can be used in two ways: multi turn winding (inserted into the circuit board) and through type.
-

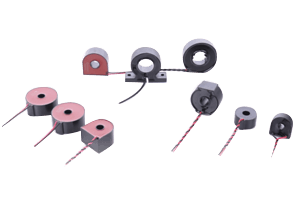

FU-CT-O HIGH ACCURACY 0.1% 20Ω 100A MINIATURE CURRENT TRANSFORMER FOR ENERGY METER
- Harmonic measurement
- 1mA to 120A range
- Accuracy 0.05%, 0.1%
- IEC 60044-1/IEC 61869-2
- UL, CE CNAS mark
- EN 61010, 600V CAT III
-

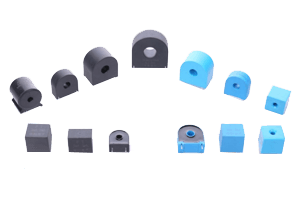

FU-CT-PCB ELECTRICITY METER 0.1% 20Ω 5A(100A) PCB MINIATURE CURRENT TRANSFORMER
_PCB_MINIATURE_CURRENT_TRANSFORMER.png)
- IEC 60044-1/IEC 61869-2
- Harmonic measurement
- Accuracy 0.1%, 0.2% 0.5%
- 1mA to 120A range
- UL, CE CNAS mark
- EN 61010, 600V CAT III
-

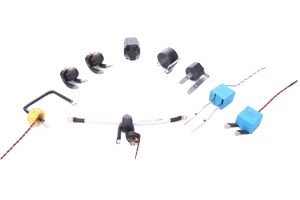

FU-CT-U HIGH ACCURACY 0.1% 10Ω 60A MINIATURE SMALL CURRENT TRANSFORMER
- 1mA to 150A range
- Accuracy 0.1%, 0.2%
- IEC 60044-1/IEC 61869-2
- Many kinds dimension
- UL, CE CNAS mark
- EN 61010, 600V CAT III
-

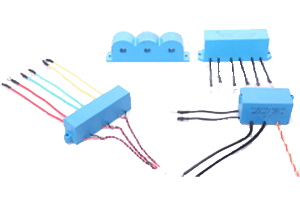

FU-CT-Z 0.1% 20Ω MINIATURE MULTIPLE PHASE CURRENT TRANSFORMER
- Multiple phase design
- 1mA to 100A range
- Accuracy 0.05%, 0.1%
- IEC 60044-1/IEC 61869-2
- UL, CE CNAS mark
- EN 61010, 600V CAT III
